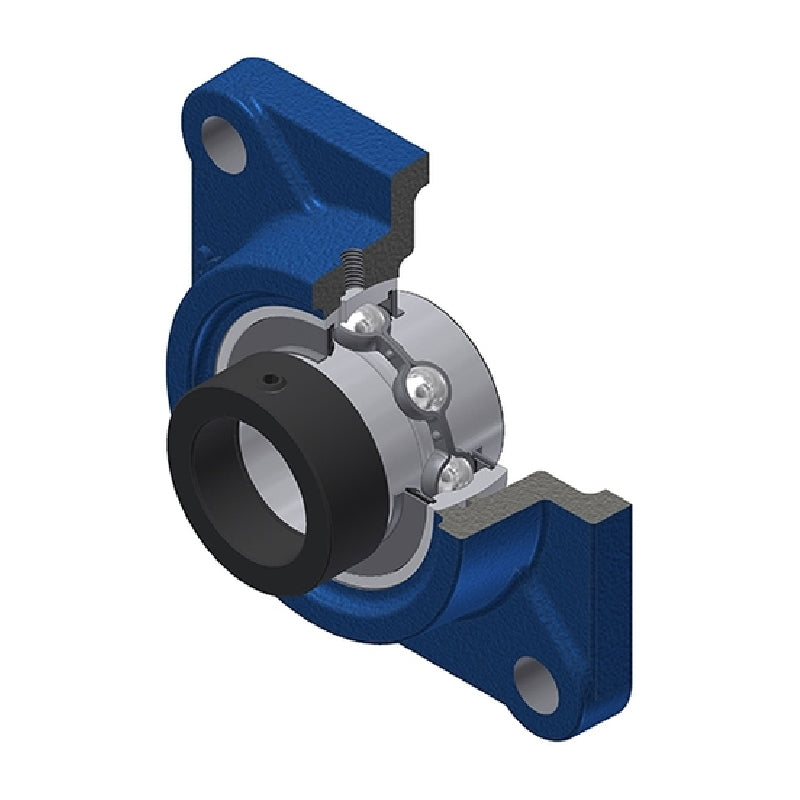

• SNR EXF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXF204-SNR

SNR EXF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
€30,95 ex VAT
€30,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €22,88
4+ €21,59
9+ €21,33
19+ €21,08
49+ €20,82
99+ €20,56
499+ €19,28
999+ €19,02
1999+ €18,76
2999+ €18,51
4999+ €17,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF200_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EXF
Bolt Hole Centres:
64mm
Technical
--- Dimensions
Shaft diameter d 20mm
A 25.5mm
A1 11mm
A2 41.5mm
B 34mm
B1 43.5mm
d1 32.4mm
e 15mm
J 64mm
L 86mm
N 12mm
S 17mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.64 kg
