• SNR EXEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
1 1

SKU: EXEHE208-SNR

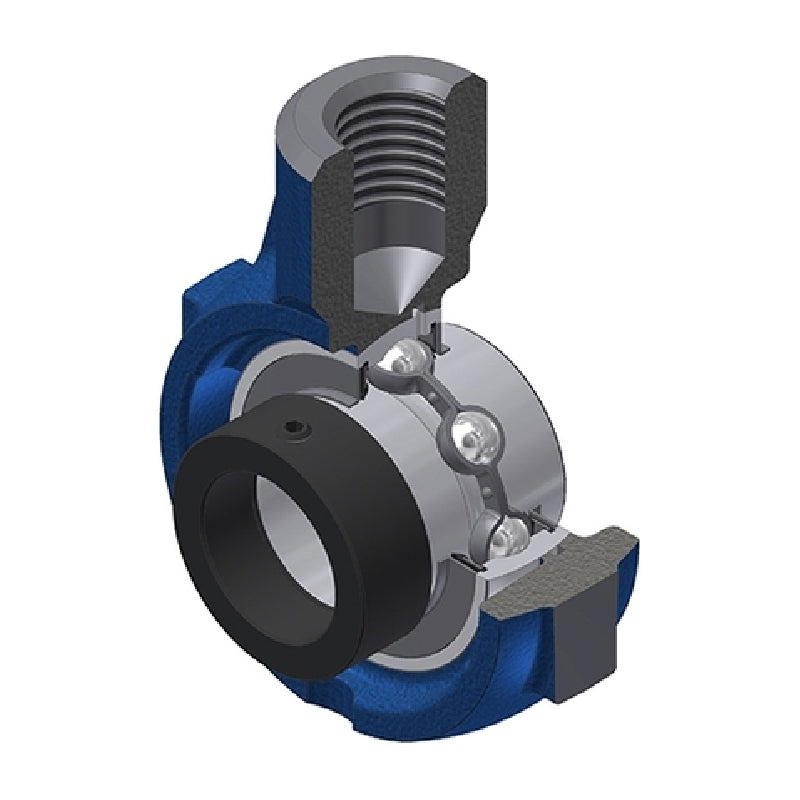

SNR EXEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR EXEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
€51,95 ex VAT
€51,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,46
4+ €37,25
9+ €36,80
19+ €36,36
49+ €35,91
99+ €35,47
499+ €33,25
999+ €32,81
1999+ €32,37
2999+ €31,92
4999+ €31,04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
WLTBCZPUZR
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXEHE
Technical

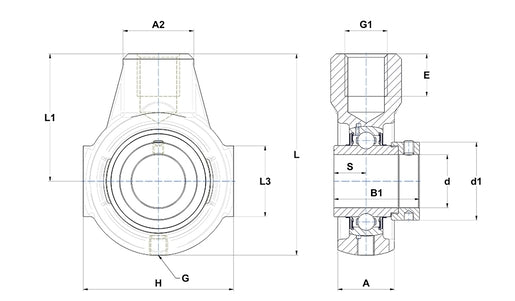

--- Dimensions
Shaft diameter d 40mm
A 36mm
A2 40mm
B1 56.3mm
d1 58mm
E 24mm
H 100mm
L 135mm
L1 85mm
L3 45mm
S 21.4mm
G R1/8″
G1 M24
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.68 kg
