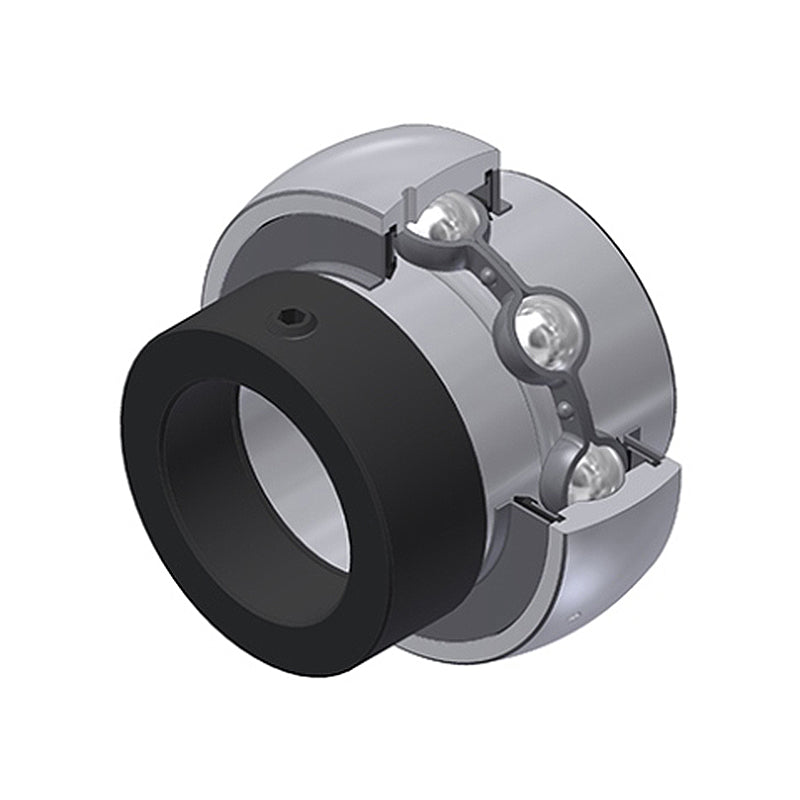

• SNR EX313G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 140mm Outside Diameter with Eccentric Collar
1 1

SKU: EX313G2-SNR

SNR EX313G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 140mm Outside Diameter with Eccentric Collar

SNR EX313G2 Metric Full Width Spherical Outer Bearing Insert 65mm Bore 140mm Outside Diameter with Eccentric Collar
€114,95 ex VAT
€114,95 ex VAT
Sale Sold out

Low stock

Price Break
3+ €86,64
5+ €81,77
9+ €80,80
19+ €79,83
49+ €78,85
74+ €77,88
99+ €73,01
199+ €72,04
249+ €71,07
499+ €70,09
999+ €68,15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
4BCQLD97QF
Brand / Quality:
SNR - High Quality
Thread Size:
M12x1.25
Inside Diameter:
65mm
Outside Diameter:
140mm
Width:
85.7mm
Style:
EX
Technical
d 65mm
D 140mm
C 38mm
B 65.1mm
B1 85.7mm
B2 27mm
d1 97mm
S 32.5mm
m 11.5mm
C1 12.1mm
r min 2mm
G M12x1.25
Wrench Size 6mm
Set screw torque 33 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 93.9kN
Static load rating C0 60.5kN
Weight 3.7kg
