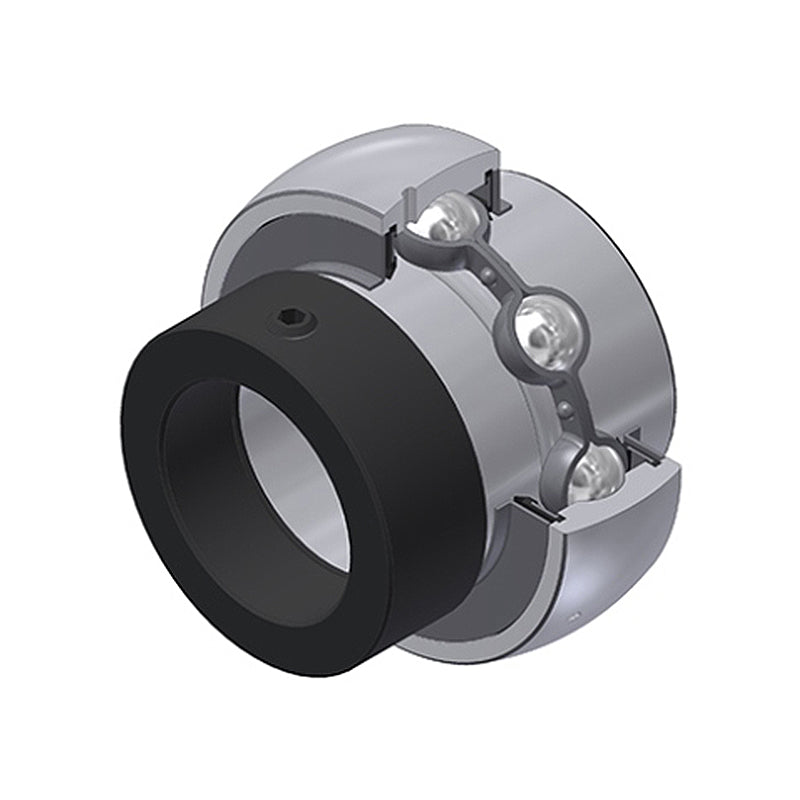

• SNR EX204G2 Metric Full Width Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
1 1

SKU: EX204G2-SNR

SNR EX204G2 Metric Full Width Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar

SNR EX204G2 Metric Full Width Spherical Outer Bearing Insert 20mm Bore 47mm Outside Diameter with Eccentric Collar
€20,95 ex VAT
€20,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €15,73
5+ €14,85
9+ €14,67
19+ €14,49
49+ €14,32
74+ €14,14
99+ €13,26
199+ €13,08
249+ €12,90
499+ €12,73
999+ €12,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
4BCQLD97QF
Brand / Quality:
SNR - High Quality
Thread Size:
M6x1
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
43.5mm
Style:
EX
Technical
d 20mm
D 47mm
C 16mm
B 34mm
B1 43.5mm
B2 13.5mm
d1 32.4mm
S 17mm
m 5mm
C1 4.4mm
r min 0.6mm
G M6x1
Wrench Size 3mm
Set screw torque 5.5 Nm
Min Temp -20 deg C
Max Temp 100 deg C
Dynamic load rating C 12.8kN
Static load rating C0 6.7kN
Weight 0.2kg
