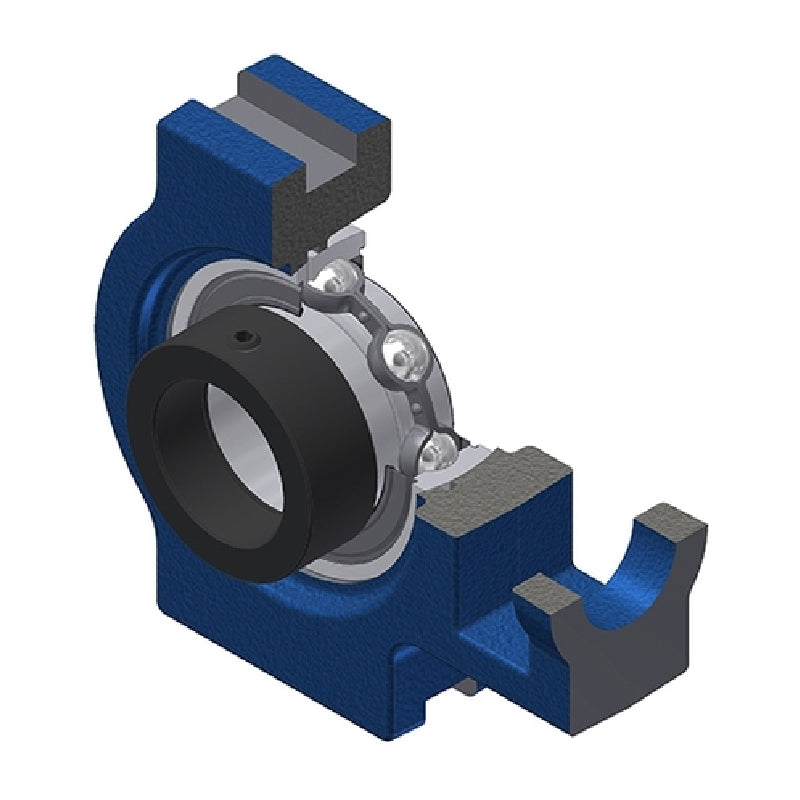

• SNR EST207 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
1 1

SKU: EST207-SNR

SNR EST207 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR EST207 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
€42,95 ex VAT
€42,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €32,60
4+ €30,77
9+ €30,40
19+ €30,04
49+ €29,67
99+ €29,30
499+ €27,47
999+ €27,10
1999+ €26,74
2999+ €26,37
4999+ €25,64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5YMLVLDPTC
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EST
Technical

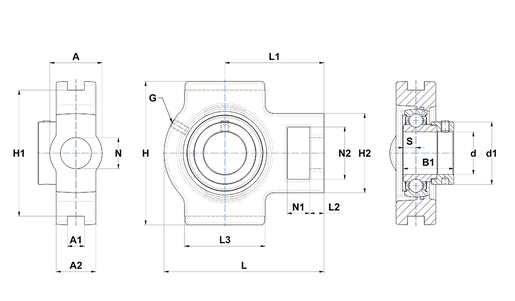

--- Dimensions
Shaft diameter d 35mm
A 37mm
A1 12mm
A2 30mm
B1 38.9mm
d1 51.1mm
H 102mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 13mm
L3 64mm
N 22mm
N1 16mm
N2 37mm
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.6 kg
