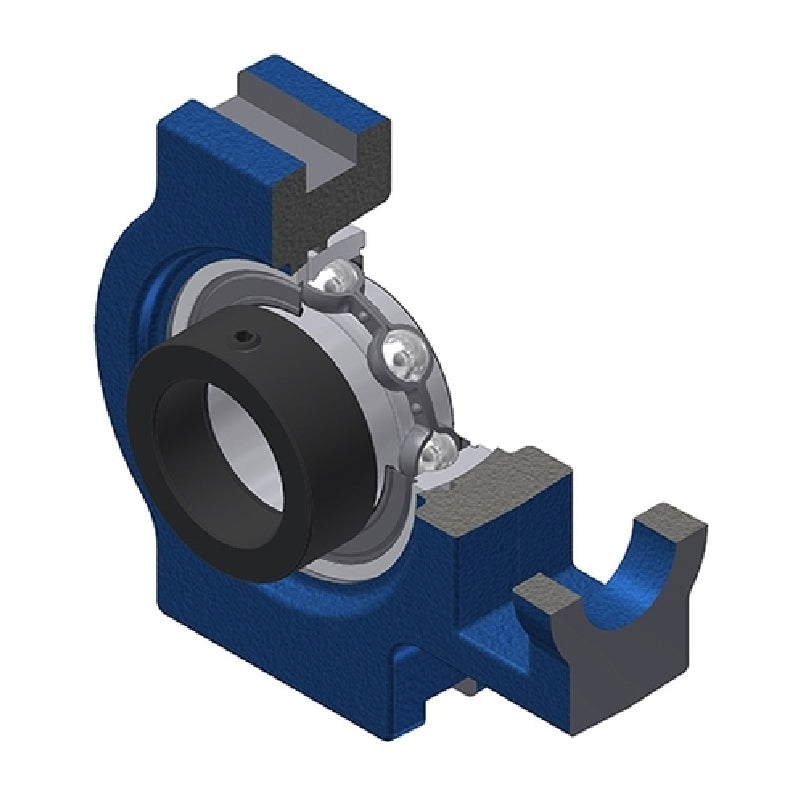

• SNR EST206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
1 1

SKU: EST206-SNR

SNR EST206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days

SNR EST206 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,17
4+ €25,64
9+ €25,34
19+ €25,03
49+ €24,73
99+ €24,42
499+ €22,90
999+ €22,59
1999+ €22,29
2999+ €21,98
4999+ €21,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5YMLVLDPTC
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
EST
Technical
--- Dimensions
Shaft diameter d 30mm
A 37mm
A1 12mm
A2 28mm
B1 35.7mm
d1 44.1mm
H 102mm
H1 89mm
H2 56mm
L 113mm
L1 70mm
L2 10mm
L3 57mm
N 22mm
N1 16mm
N2 37mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.23 kg
