• SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
1 1

SKU: EST204-SNR

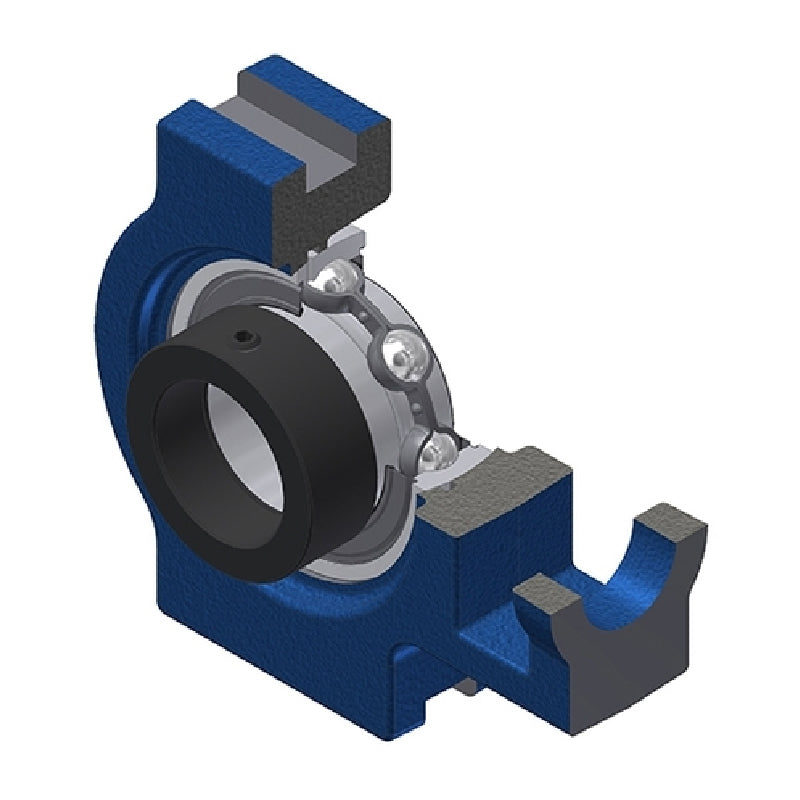

SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR EST204 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,02
4+ €18,89
9+ €18,67
19+ €18,44
49+ €18,22
99+ €17,99
499+ €16,87
999+ €16,64
1999+ €16,42
2999+ €16,19
4999+ €15,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5YMLVLDPTC
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
EST
Technical
--- Dimensions
Shaft diameter d 20mm
A 32mm
A1 12mm
A2 21mm
B1 30.9mm
d1 32.4mm
H 89mm
H1 76mm
H2 51mm
L 94mm
L1 61mm
L2 10mm
L3 51mm
N 19mm
N1 16mm
N2 32mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 0.75 kg
