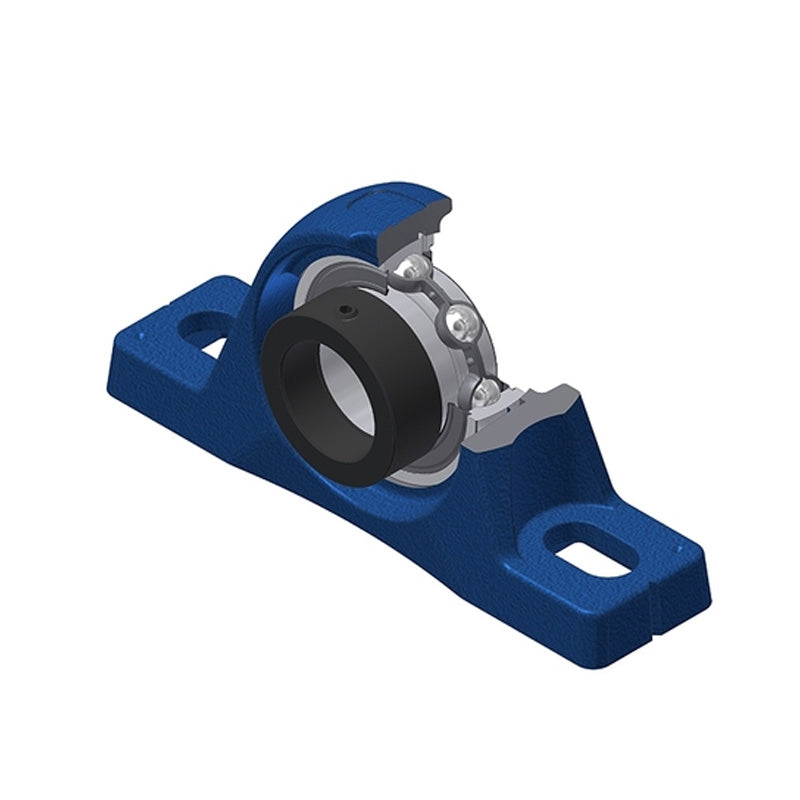

• SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
  • SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
1 2

SKU: ESPLE208-SNR

SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPLE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
€40,95 ex VAT
€40,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,79
4+ €29,06
9+ €28,72
19+ €28,37
49+ €28,02
99+ €27,68
499+ €25,95
999+ €25,60
1999+ €25,26
2999+ €24,91
4999+ €24,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
11SWP7N51J
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESPLE
Bolt Hole Centres:
137.5mm
Technical

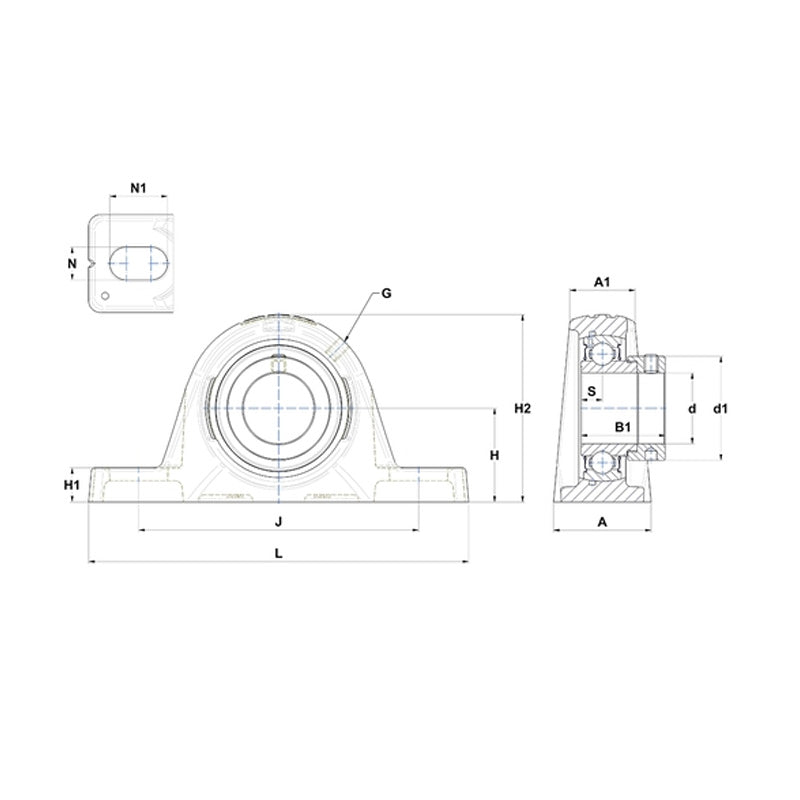

--- Dimensions
Shaft diameter d 40mm
A 51mm
A1 34.5mm
B 30.2mm
d1 58mm
H 49.2mm
H1 18.5mm
H2 98.5mm
J 137.5mm
L 180.5mm
N 14mm
N1 24.5mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.95 kg
