• SNR ESPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
  • SNR ESPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
1 2

SKU: ESPG206-SNR

SNR ESPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days

SNR ESPG206 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,17
4+ €25,64
9+ €25,34
19+ €25,03
49+ €24,73
99+ €24,42
499+ €22,90
999+ €22,59
1999+ €22,29
2999+ €21,98
4999+ €21,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3IWCP9C01M
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESPG
Bolt Hole Centres:
60mm
Technical

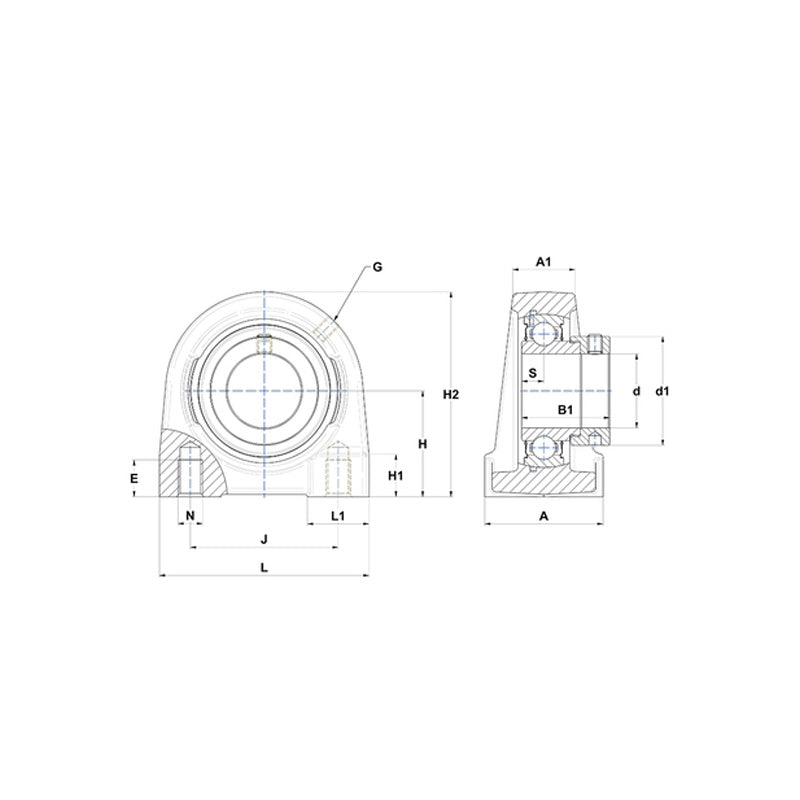

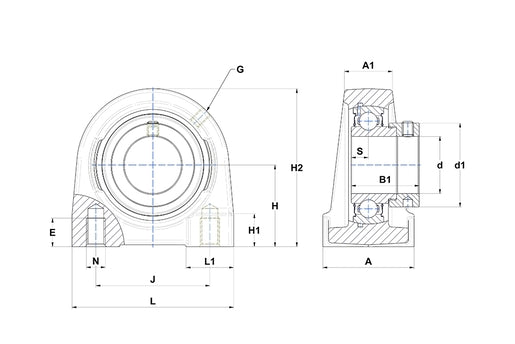

--- Dimensions
Shaft diameter 30mm
A 48mm
A1 25mm
B 23.8mm
d1 44.1mm
E 18mm
H 42.9mm
H1 17mm
H2 83mm
J 60mm
L 85mm
L1 25mm
N M10
S 9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.13 kg
