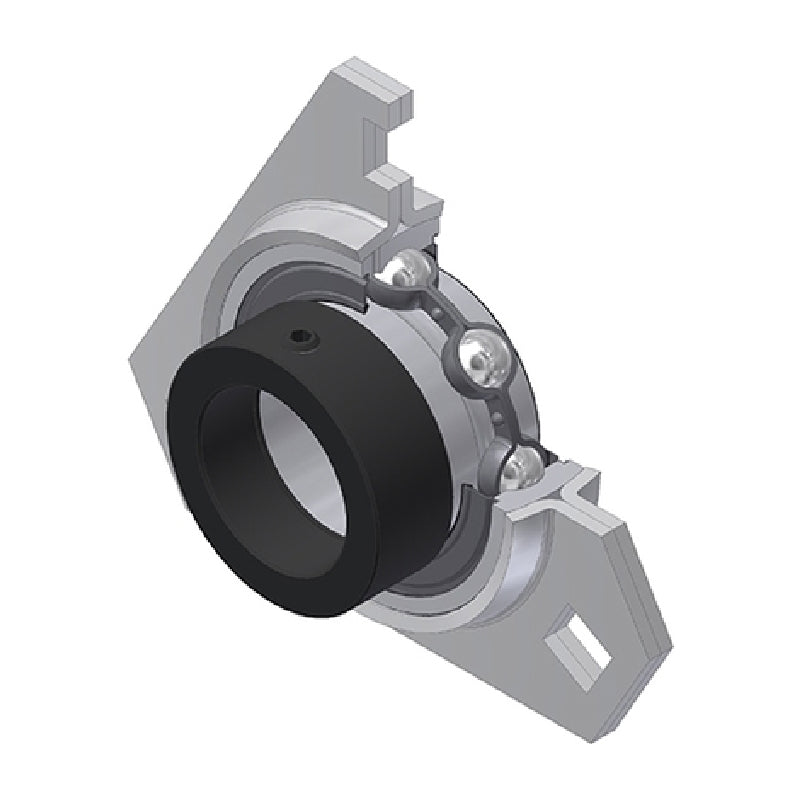

• SNR ESPFT205 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPFT205-SNR

SNR ESPFT205 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFT205 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
€23,95 ex VAT
€23,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €17,54
4+ €16,55
9+ €16,36
19+ €16,16
49+ €15,96
99+ €15,77
499+ €14,78
999+ €14,58
1999+ €14,39
2999+ €14,19
4999+ €13,79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
OGVVBZGEOP
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESPFT
Bolt Hole Centres:
76mm
Technical

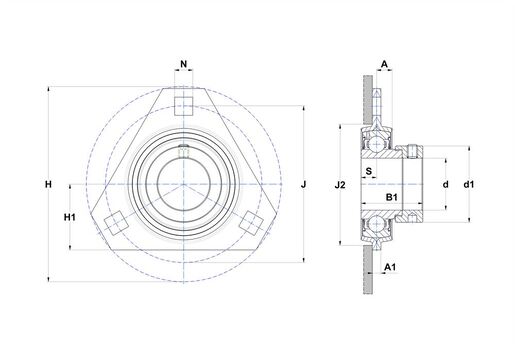

--- Dimensions
Shaft diameter d 25mm
A 8.7mm
A1 4mm
A2 23.4mm
B 21.4mm
B1 30.9mm
d1 37.4mm
H 95.2mm
H1 34.2mm
J 76mm
N 8.7mm
S 7.5mm
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.32 kg
