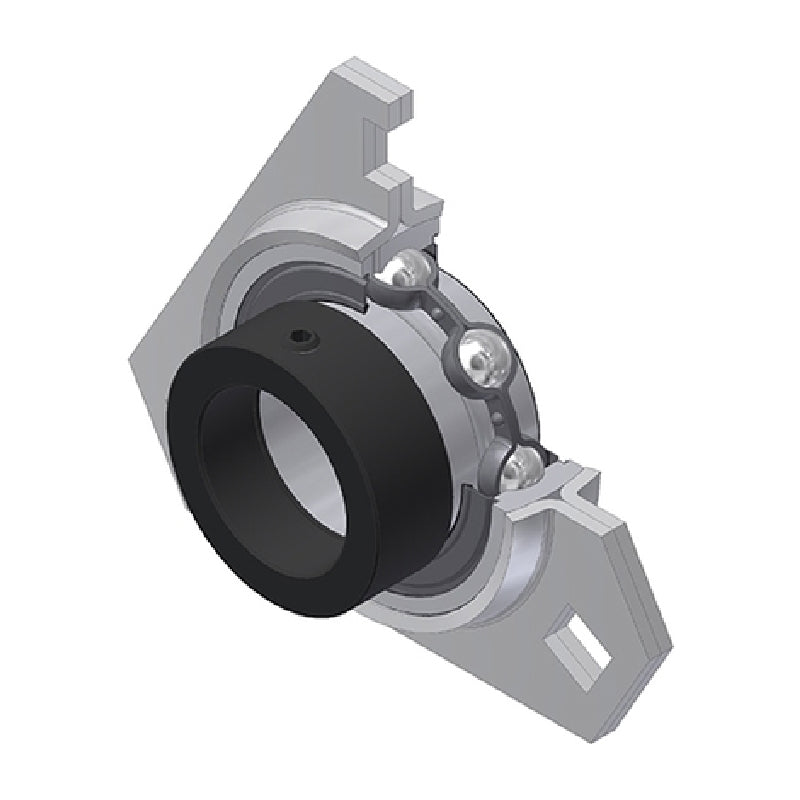

• SNR ESPFT204 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPFT204-SNR

SNR ESPFT204 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFT204 Metric Pressed Steel 3 Bolt Triangle Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
€20,95 ex VAT
€20,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €15,35
4+ €14,49
9+ €14,32
19+ €14,14
49+ €13,97
99+ €13,80
499+ €12,94
999+ €12,76
1999+ €12,59
2999+ €12,42
4999+ €12,07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
OGVVBZGEOP
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESPFT
Bolt Hole Centres:
71.5mm
Technical
--- Dimensions
Shaft diameter d 20mm
A 7.2mm
A1 4mm
A2 23.4mm
B 21.4mm
B1 30.9mm
d1 32.4mm
H 90.5mm
H1 33.3mm
J 71.5mm
N 8.7mm
S 7.5mm
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.27 kg
