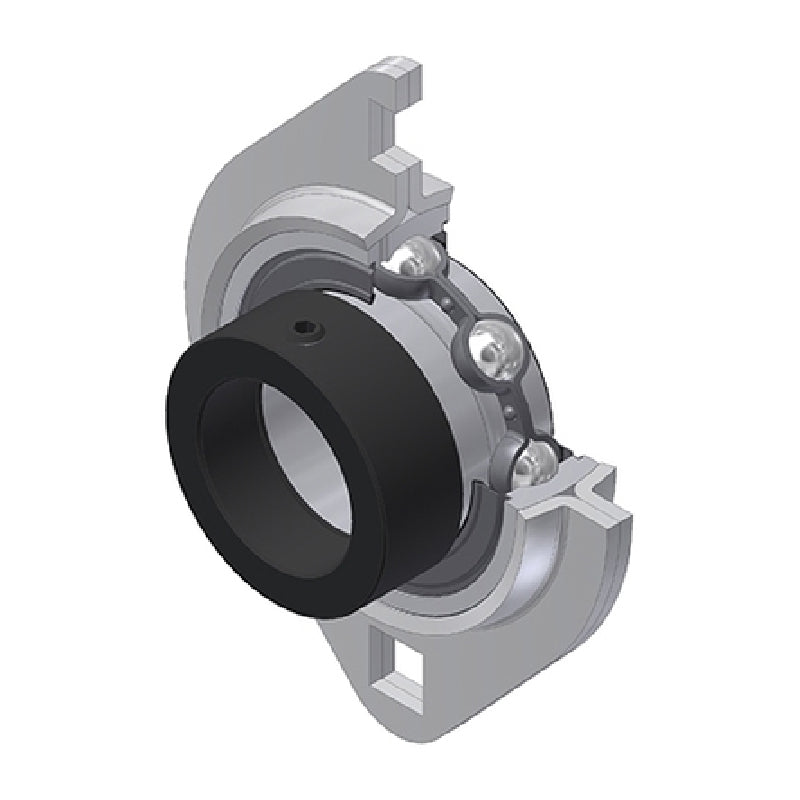

• SNR ESPFL207 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPFL207-SNR

SNR ESPFL207 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFL207 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
€32,95 ex VAT
€32,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €24,78
4+ €23,39
9+ €23,11
19+ €22,83
49+ €22,56
99+ €22,28
499+ €20,88
999+ €20,61
1999+ €20,33
2999+ €20,05
4999+ €19,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBH2BO_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESPFL
Bolt Hole Centres:
5mm
Technical

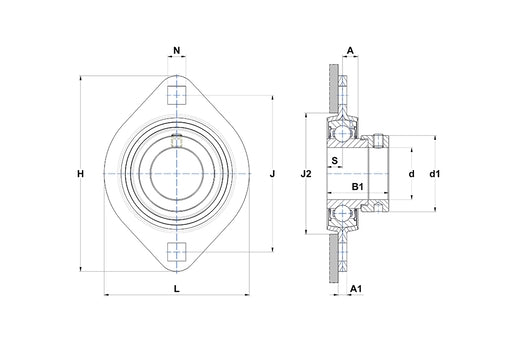

--- Dimensions
Shaft diameter d 35mm
A 10.5mm
A1 5mm
A2 29.4mm
B 25.4mm
B1 38.9mm
d1 51.1mm
H 123mm
J 100mm
L 93.7mm
N 10.5mm
S 9.5mm
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.71 kg
