SKU: ESPFL204-SNR

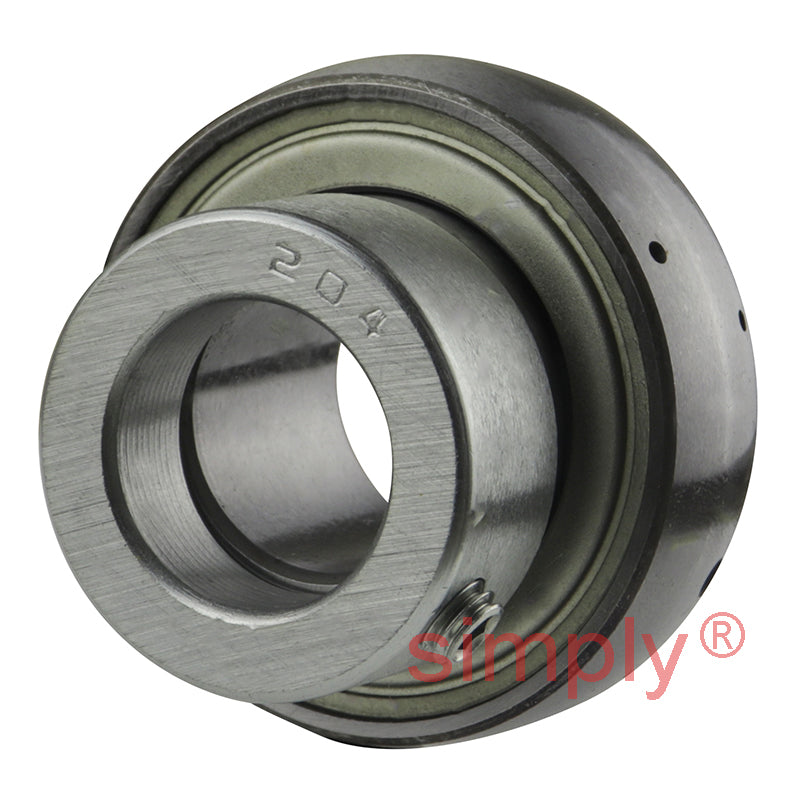

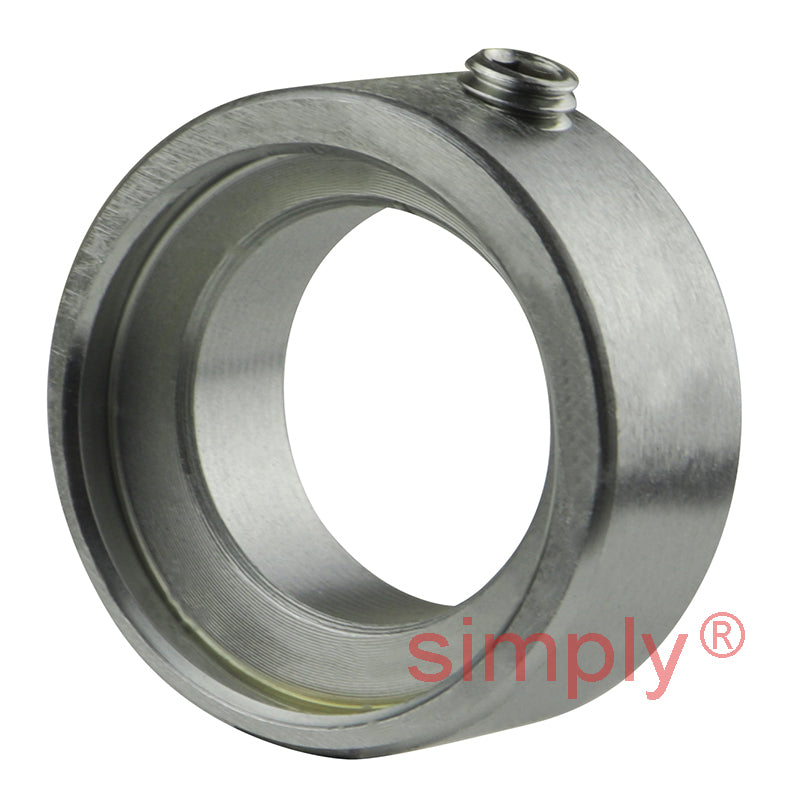

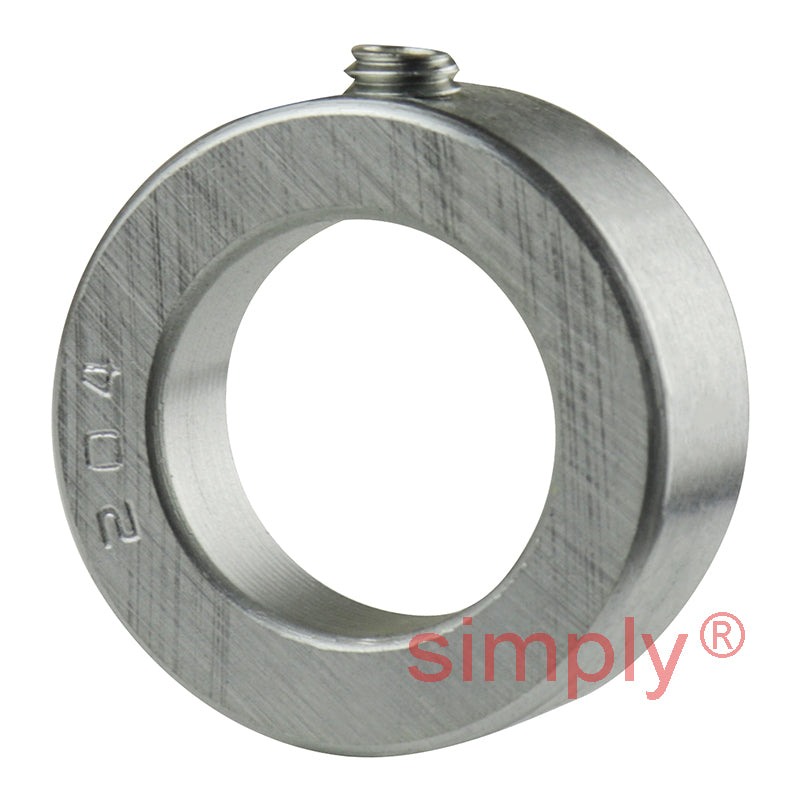

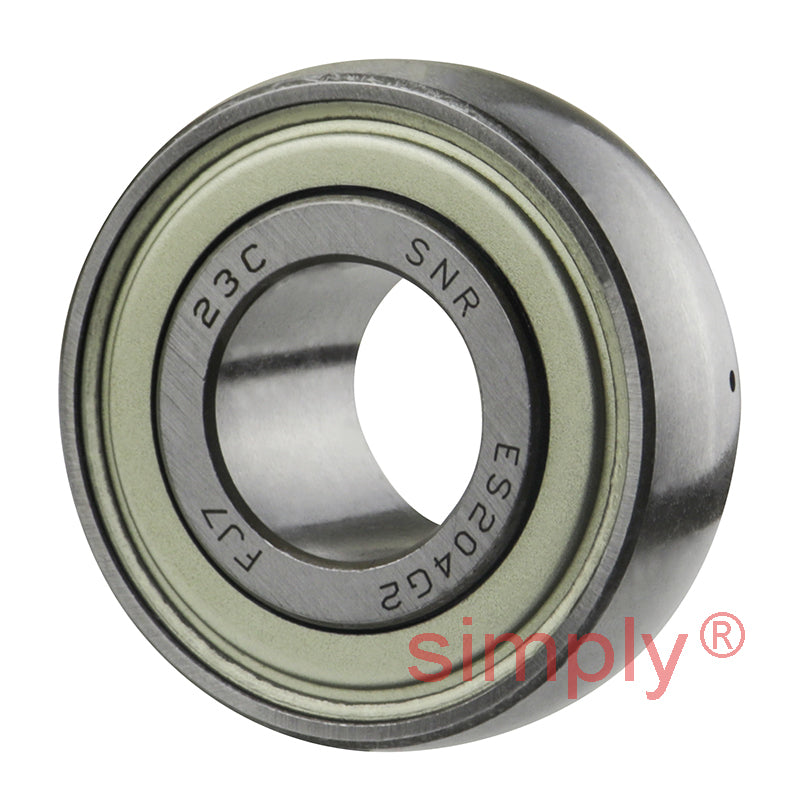

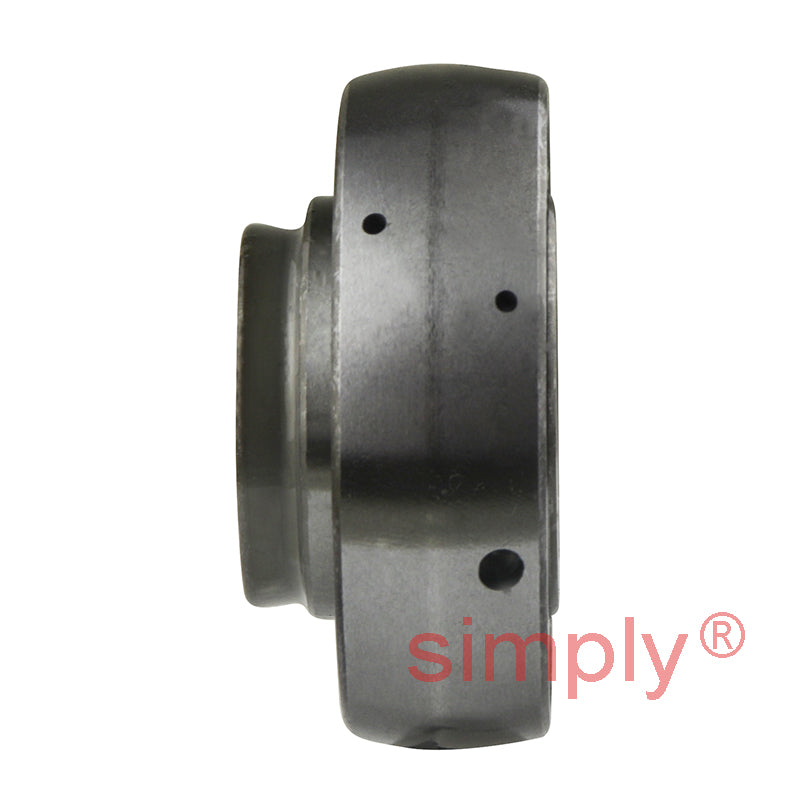

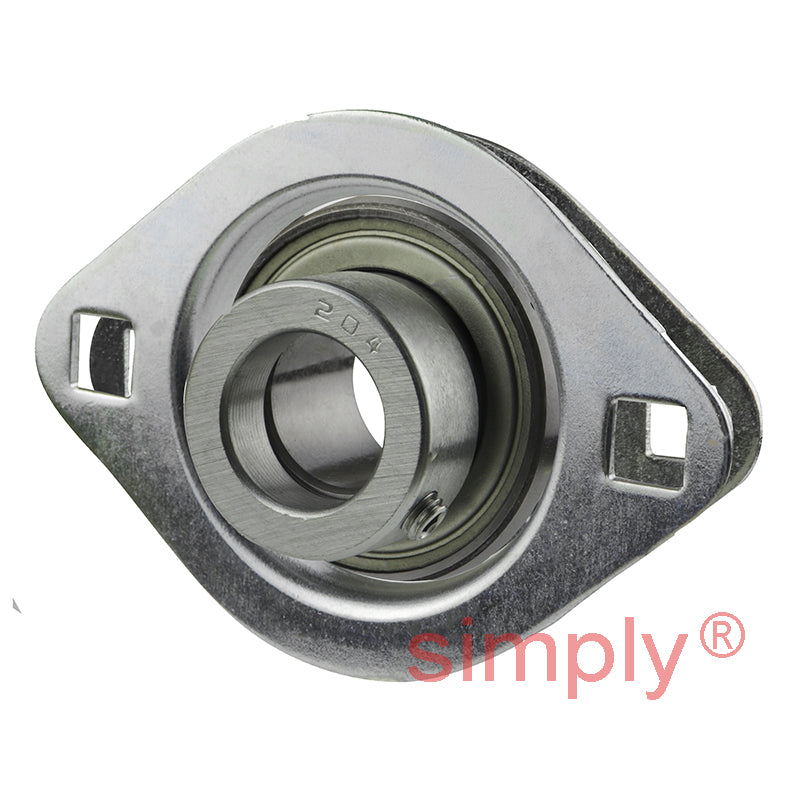

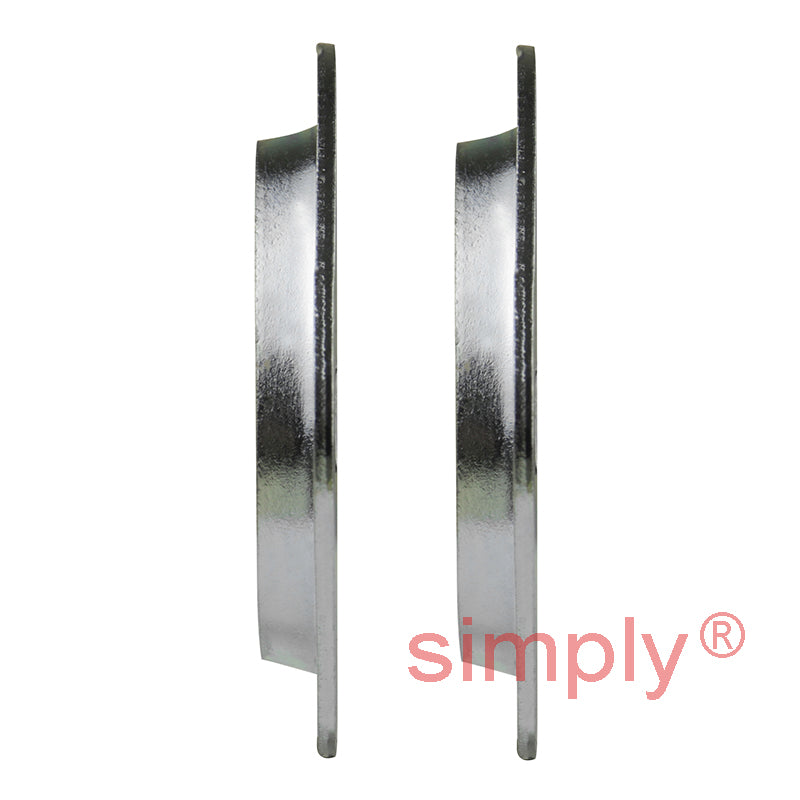

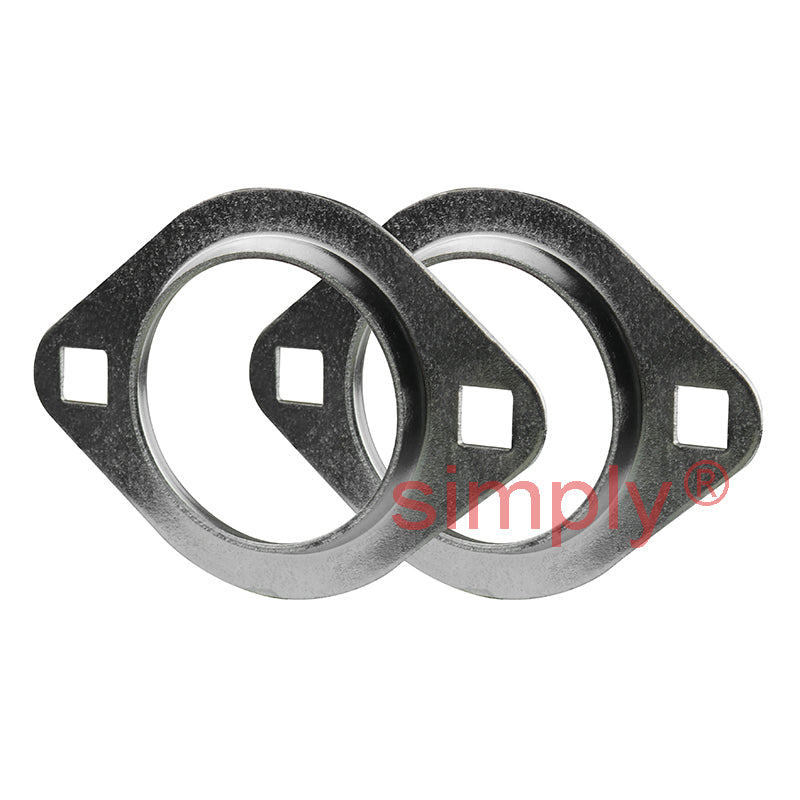

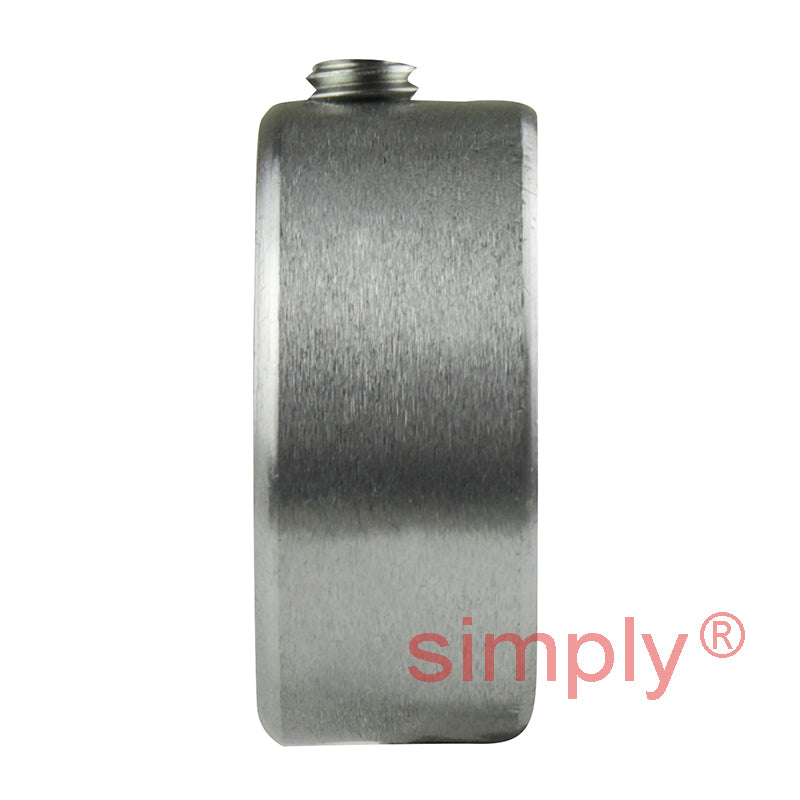

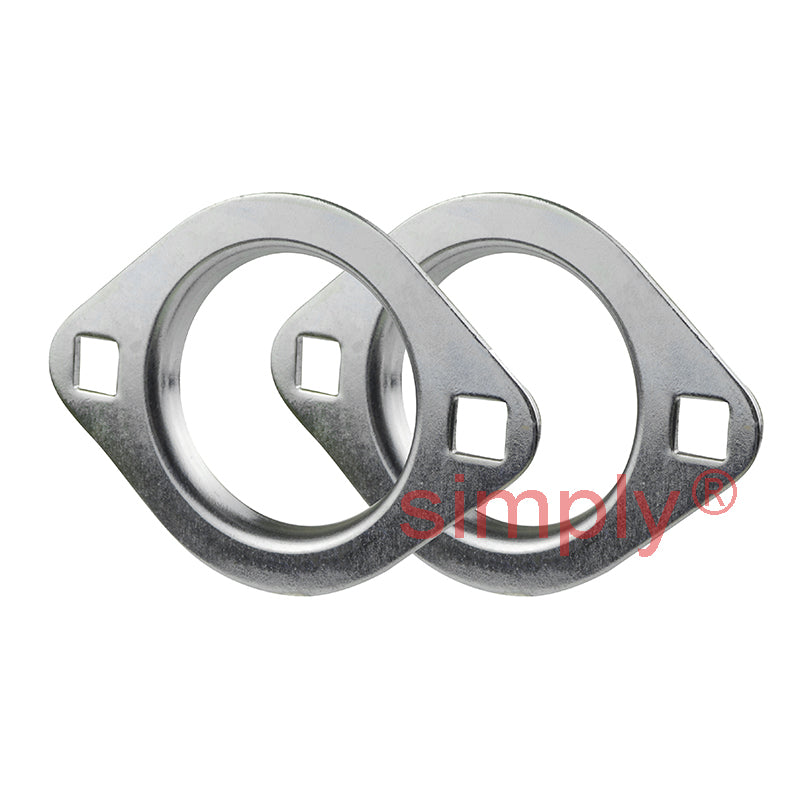

SNR ESPFL204 Metric Two Bolt Oval Pressed Steel Bearing Housing with 20mm Eccentric Collar Insert
SNR ESPFL204 Metric Two Bolt Oval Pressed Steel Bearing Housing with 20mm Eccentric Collar Insert
Regular price
€20,95
ex VAT
Regular price
Sale price
€20,95
ex VAT
In stock
Price Break
3+
€15,35
4+
€14,49
9+
€14,32
19+
€14,14
49+
€13,97
99+
€13,80
499+
€12,94
999+
€12,76
1999+
€12,59
2999+
€12,42
4999+
€12,07
Quantity
Couldn't load pickup availability
Description
Description
SBH2BO_DESC
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESPFL
- Bolt Hole Centres:
- 4.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 7.7mm |
| A1 | 4.5mm |
| A2 | 23.4mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 32.4mm |
| H | 91mm |
| J | 71.5mm |
| L | 68mm |
| N | 9mm |
| S | 7.5mm |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.24 kg |
