• SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPFL202-SNR

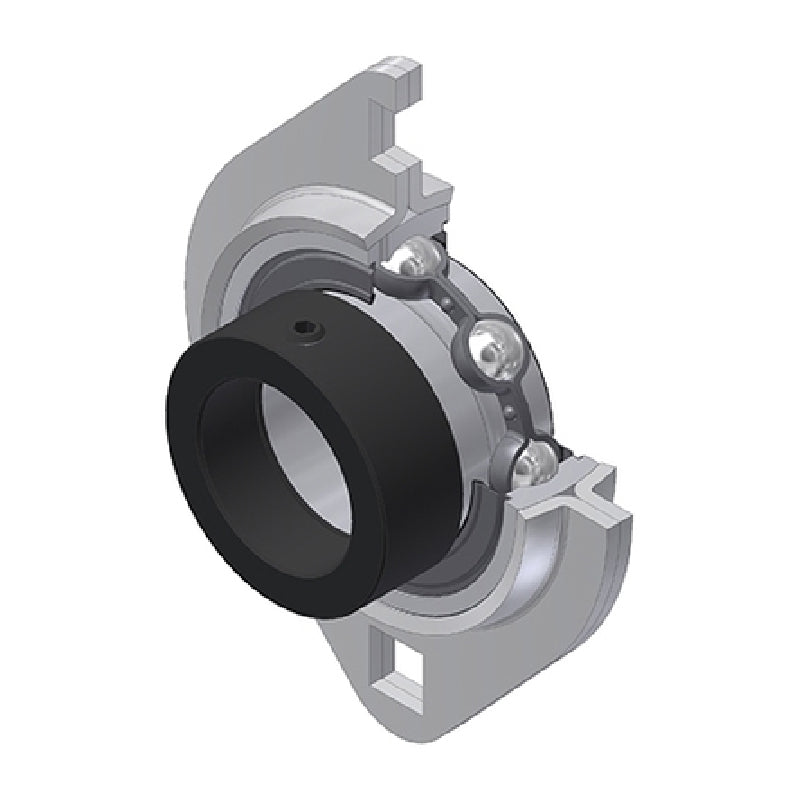

SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPFL202 Metric Two Bolt Oval Pressed Steel Bearing Housing with 15mm Eccentric Collar Insert - Allow 2-3 Days
€20,95 ex VAT
€20,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €15,35
4+ €14,49
9+ €14,32
19+ €14,14
49+ €13,97
99+ €13,80
499+ €12,94
999+ €12,76
1999+ €12,59
2999+ €12,42
4999+ €12,07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBH2BO_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
15mm
Style:
ESPFL
Bolt Hole Centres:
4mm
Technical

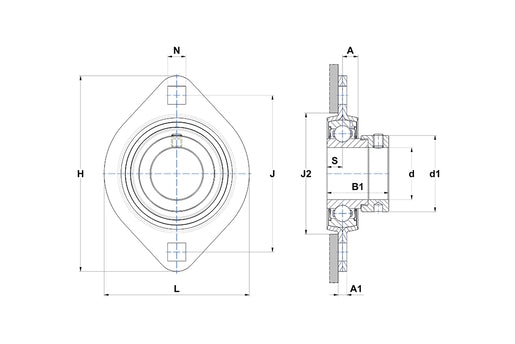

--- Dimensions
Shaft diameter d 15mm
A 6.7mm
A1 4mm
A2 22.1mm
B 19.1mm
B1 28.6mm
d1 27.2mm
H 81mm
J 63.5mm
L 58.7mm
N 7.1mm
S 6.5mm
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.21 kg
