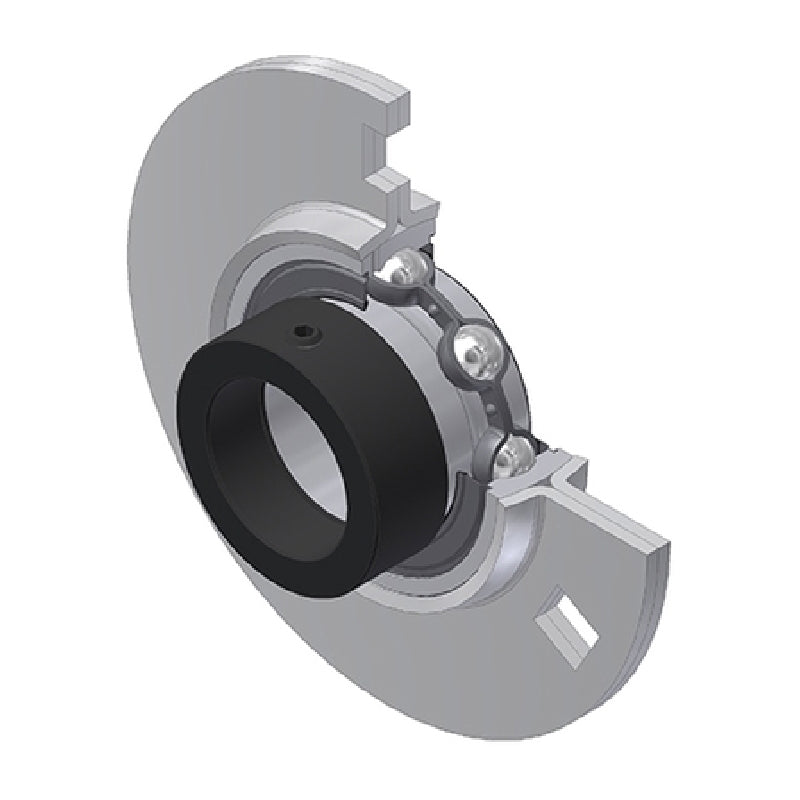

• SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPF210-SNR

SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
€45,95 ex VAT
€45,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €34,31
4+ €32,39
9+ €32,00
19+ €31,62
49+ €31,23
99+ €30,84
499+ €28,92
999+ €28,53
1999+ €28,15
2999+ €27,76
4999+ €26,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBPF3_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPF
Pitch Circle Diameter:
127mm
Technical
--- Dimensions
Shaft diameter 50mm
A 10.5mm
A1 8mm
A2 32.7mm
B 30.2mm
B1 43.7mm
d1 67.2mm
H 155.6mm
J 127mm
N 13.5mm
S 11mm
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.68 kg
