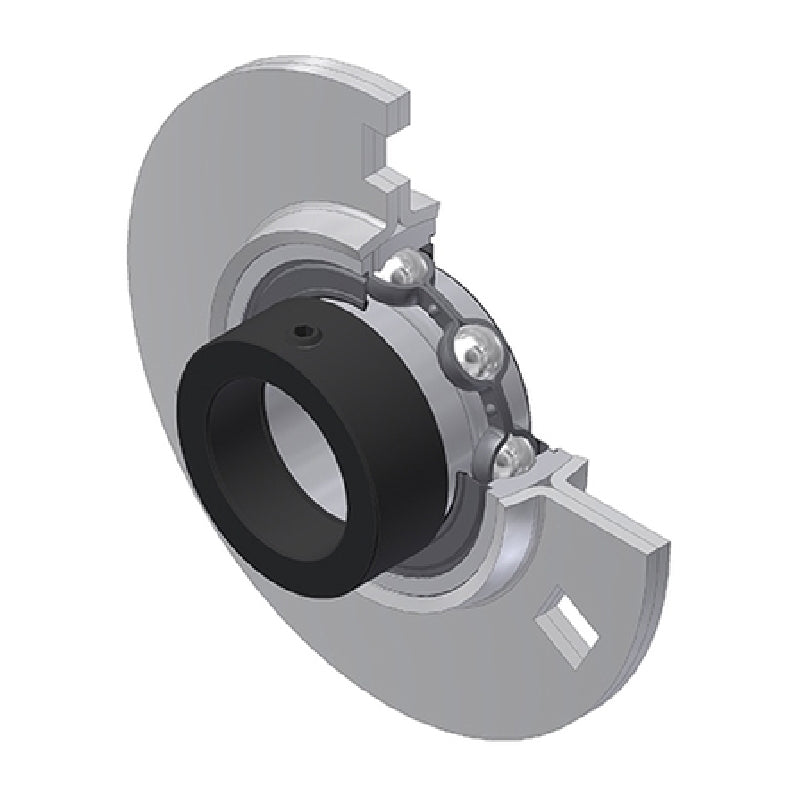

• SNR ESPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPF207-SNR

SNR ESPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPF207 Round 3 Bolt Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
€30,95 ex VAT
€30,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €22,88
4+ €21,59
9+ €21,33
19+ €21,08
49+ €20,82
99+ €20,56
499+ €19,28
999+ €19,02
1999+ €18,76
2999+ €18,51
4999+ €17,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SBPF3_DESC
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESPF
Pitch Circle Diameter:
100mm
Technical

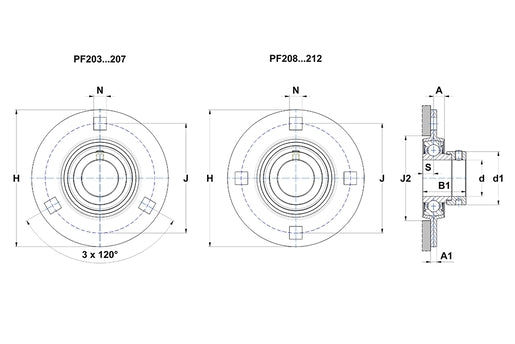

--- Dimensions
Shaft diameter 35mm
A 10.8mm
A1 5mm
A2 29.4mm
B 25.4mm
B1 38.9mm
d1 51.1mm
H 126.5mm
J 100mm
N 11mm
S 9.5mm
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.89 kg
