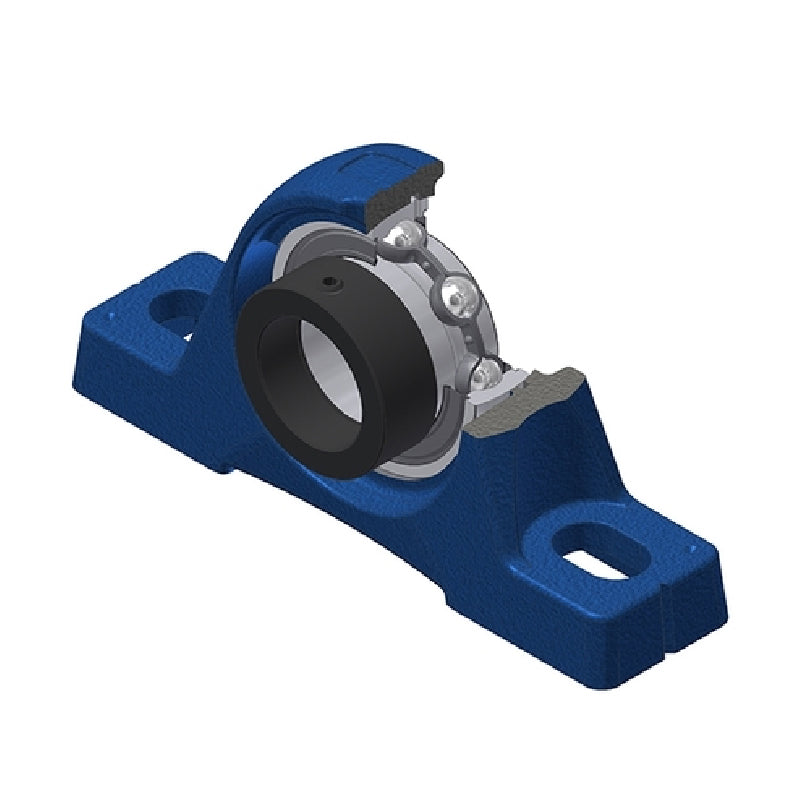

• SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE212-SNR

SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
€76,95 ex VAT
€76,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €58,19
4+ €54,92
9+ €54,27
19+ €53,61
49+ €52,96
99+ €52,31
499+ €49,04
999+ €48,38
1999+ €47,73
2999+ €47,08
4999+ €45,77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESPE
Bolt Hole Centres:
190mm
Technical
--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 33.4mm
d1 82mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 12mm
G R1/8"
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.5 kg
