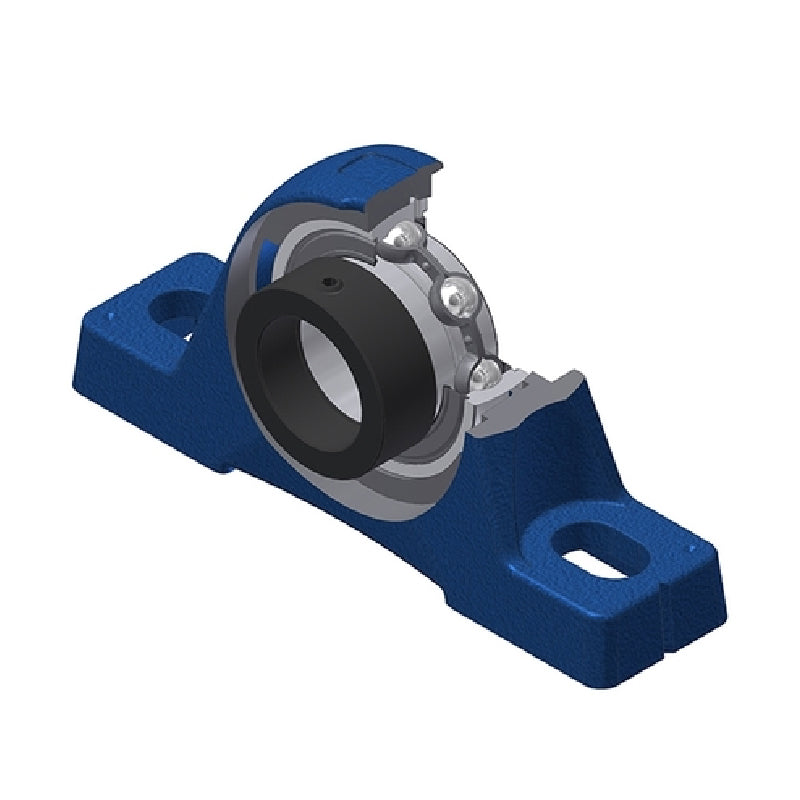

• SNR ESPE210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE210N-SNR

SNR ESPE210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
€61,95 ex VAT
€61,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €46,33
4+ €43,72
9+ €43,20
19+ €42,68
49+ €42,16
99+ €41,64
499+ €39,04
999+ €38,52
1999+ €38,00
2999+ €37,48
4999+ €36,44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPE
Bolt Hole Centres:
158mm
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 11mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.6 kg
