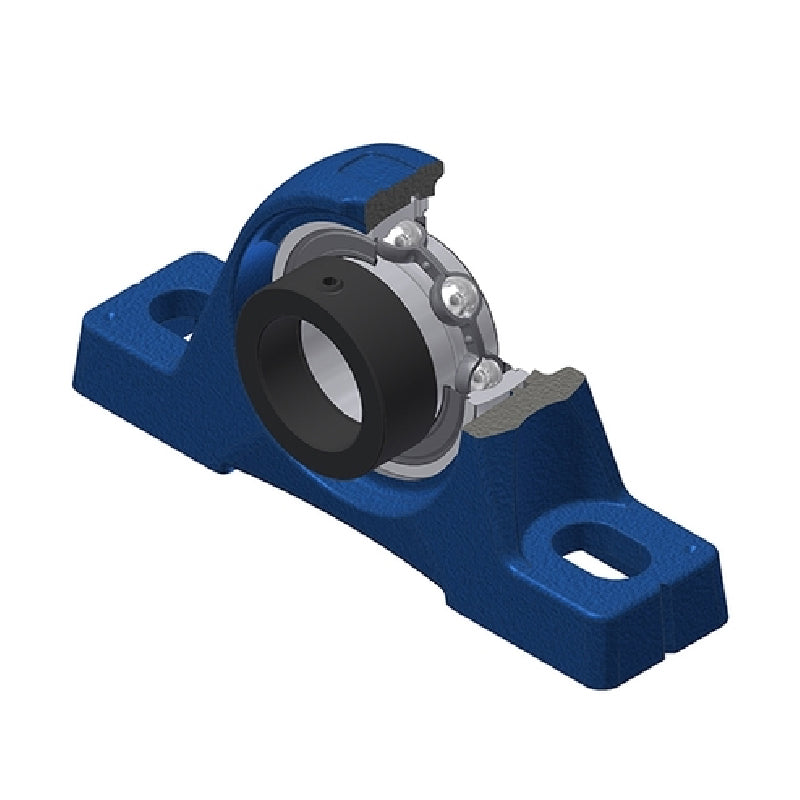

• SNR ESPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE209-SNR

SNR ESPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
€47,95 ex VAT
€47,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €36,03
4+ €34,01
9+ €33,60
19+ €33,20
49+ €32,79
99+ €32,39
499+ €30,36
999+ €29,96
1999+ €29,55
2999+ €29,15
4999+ €28,34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
ESPE
Bolt Hole Centres:
150mm
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 30.2mm
d1 62mm
H 54mm
H1 21.5mm
H2 107mm
J 150mm
L 192mm
L1 54.5mm
N 14mm
N1 29mm
S 11mm
G R1/8"
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.19 kg
