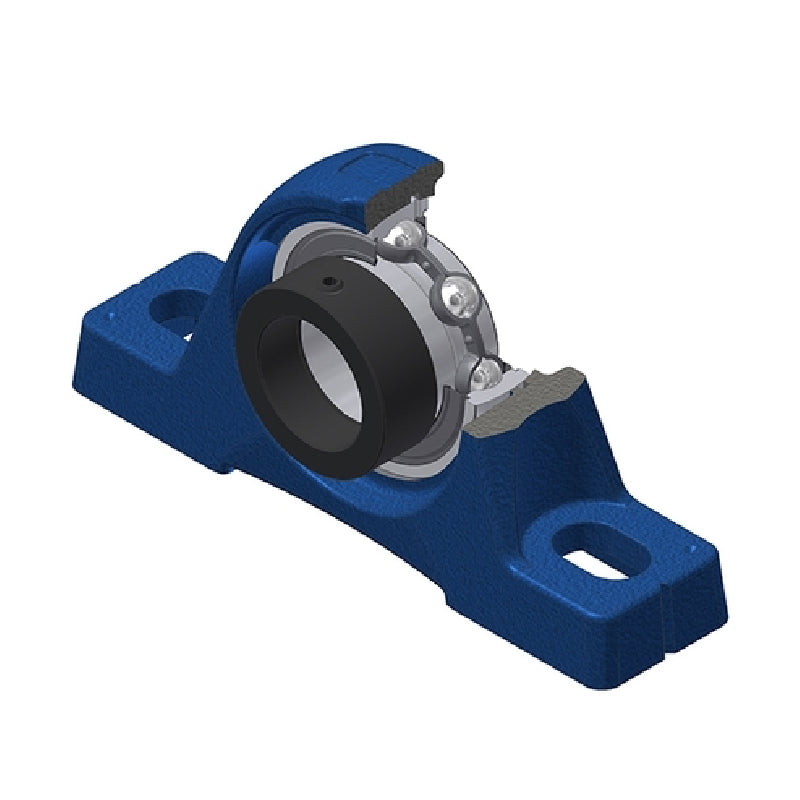

• SNR ESPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE207-SNR

SNR ESPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,69
4+ €25,19
9+ €24,89
19+ €24,59
49+ €24,29
99+ €23,99
499+ €22,49
999+ €22,19
1999+ €21,89
2999+ €21,59
4999+ €20,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESPE
Bolt Hole Centres:
126mm
Technical

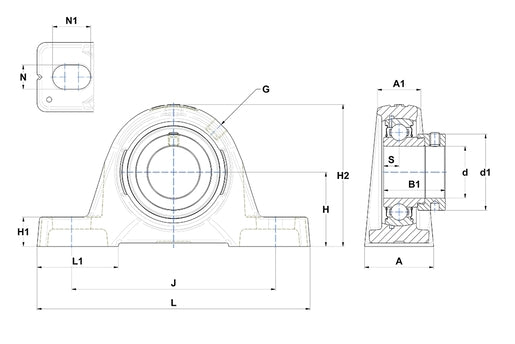

--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 25.4mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 9.5mm
G R1/8"
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.6 kg
