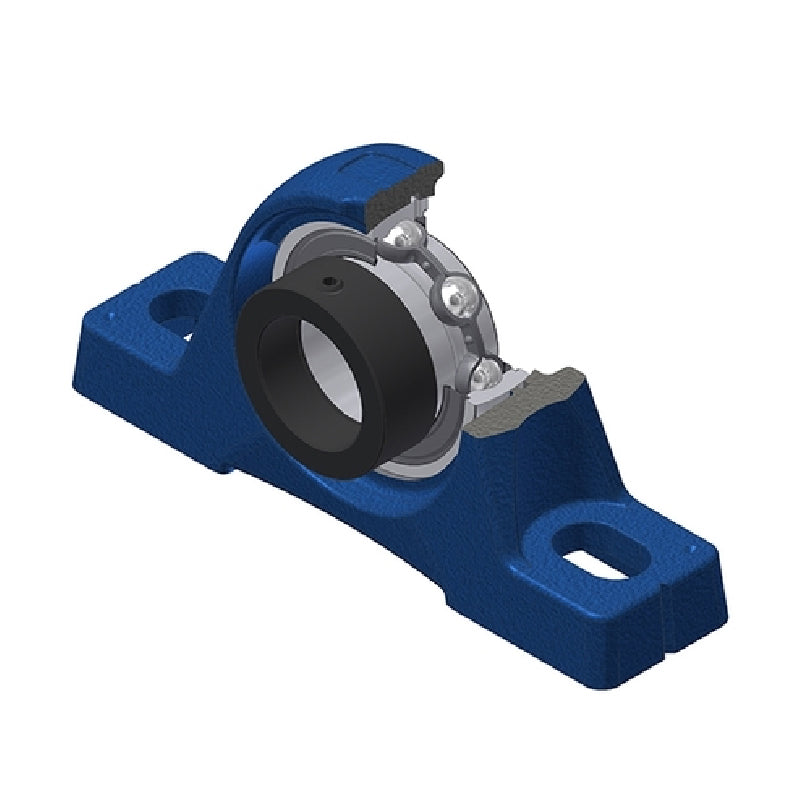

• SNR ESPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE205-SNR

SNR ESPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,02
4+ €18,89
9+ €18,67
19+ €18,44
49+ €18,22
99+ €17,99
499+ €16,87
999+ €16,64
1999+ €16,42
2999+ €16,19
4999+ €15,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESPE
Bolt Hole Centres:
103mm
Technical
--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 21.4mm
d1 37.4mm
H 36.5mm
H1 14.5mm
H2 70mm
J 103mm
L 130mm
L1 39mm
N 11mm
N1 19mm
S 7.5mm
G R1/8"
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.69 kg
