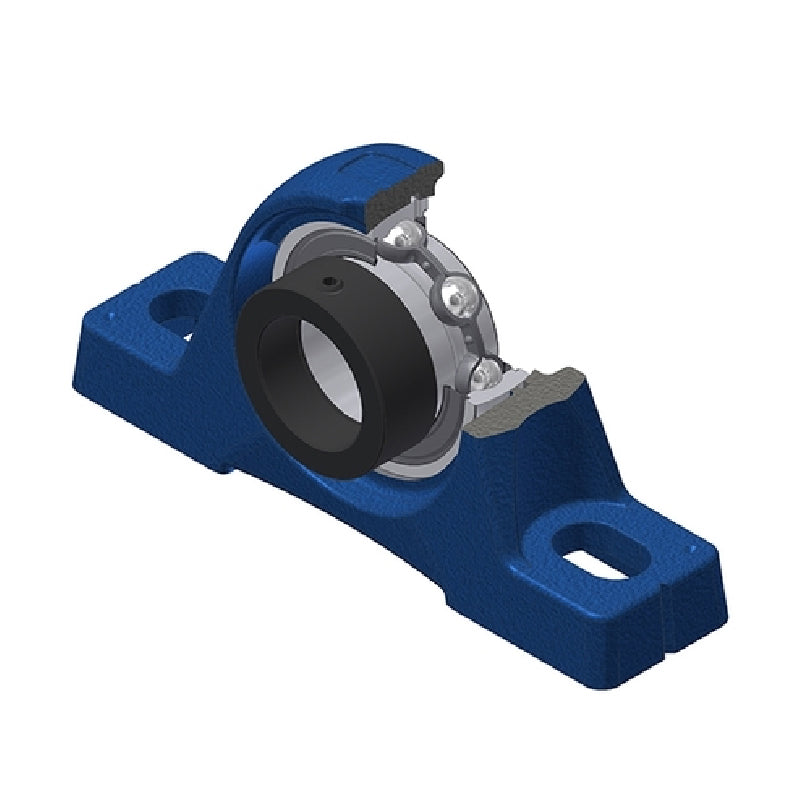

• SNR ESPE204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESPE204-SNR

SNR ESPE204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Eccentric Collar Insert - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €19,74
4+ €18,63
9+ €18,41
19+ €18,18
49+ €17,96
99+ €17,74
499+ €16,63
999+ €16,41
1999+ €16,19
2999+ €15,97
4999+ €15,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CKLDFUFNDM
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESPE
Bolt Hole Centres:
97mm
Technical

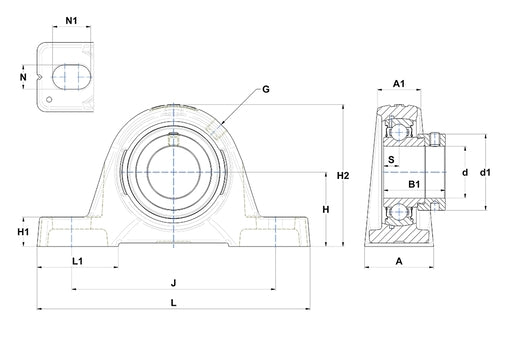

--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 21.4mm
d1 32.4mm
H 33.3mm
H1 14.5mm
H2 64mm
J 97mm
L 130mm
L1 40mm
N 11mm
N1 19mm
S 7.5mm
G R1/8"
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.55 kg
