• SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
  • SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
1 2

SKU: ESPAE210-SNR

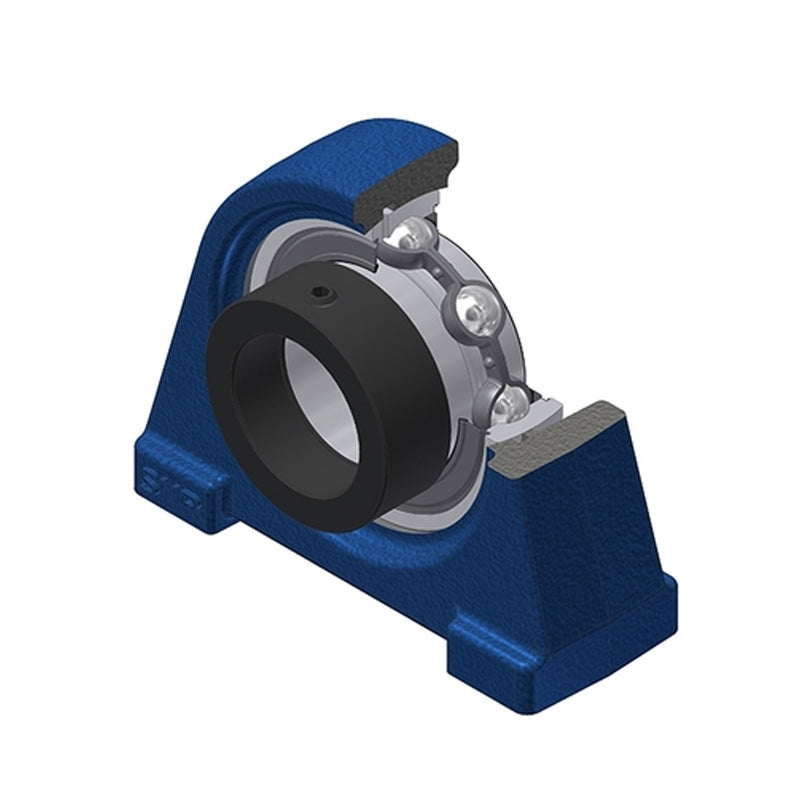

SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days

SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
€57,95 ex VAT
€57,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €43,34
4+ €40,90
9+ €40,42
19+ €39,93
49+ €39,44
99+ €38,96
499+ €36,52
999+ €36,03
1999+ €35,55
2999+ €35,06
4999+ €34,09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
N3G4VXOYBO
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESPAE
Bolt Hole Centres:
101.6mm
Technical

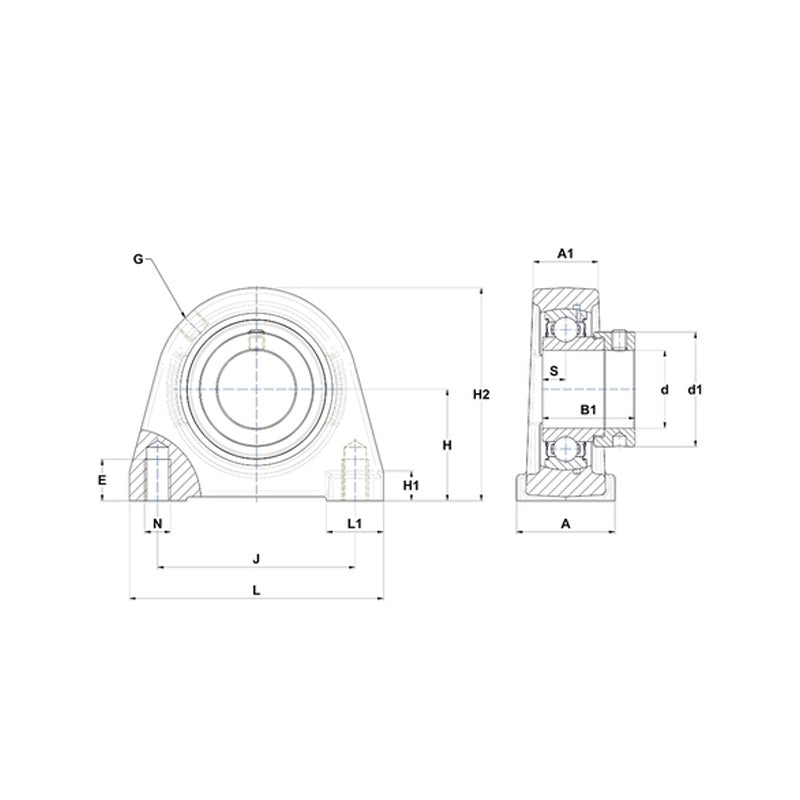

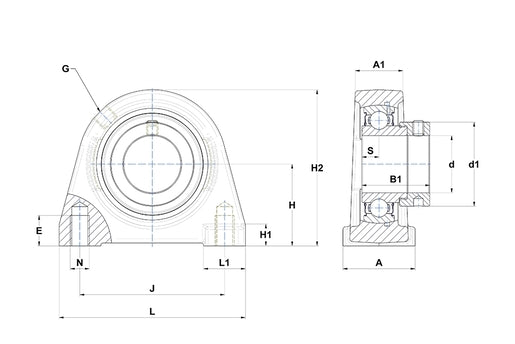

--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 30.2mm
d1 67.2mm
E 20mm
H 57.2mm
H1 15mm
H2 115mm
J 101.6mm
L 135mm
L1 33.5mm
N M16
S 11mm
G R1/8"
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.5 kg
