SKU: ESPAE209-SNR

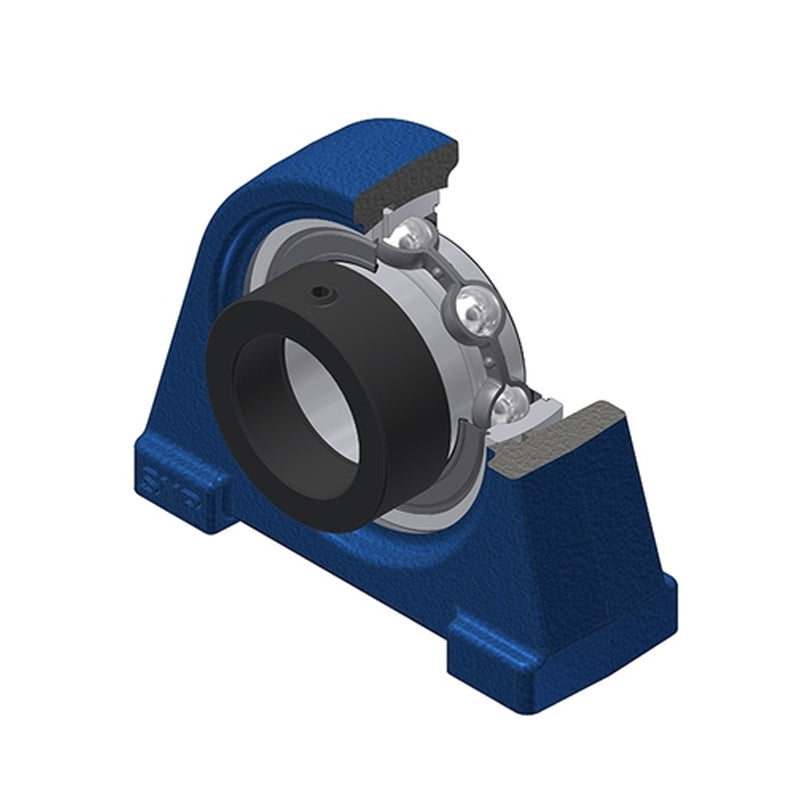

SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR ESPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
€52,95 ex VAT
€52,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €40,00
4+ €37,75
9+ €37,30
19+ €36,85
49+ €36,40
99+ €35,95
499+ €33,71
999+ €33,26
1999+ €32,81
2999+ €32,36
4999+ €31,46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
N3G4VXOYBO
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
ESPAE
Bolt Hole Centres:
95.3mm
Technical

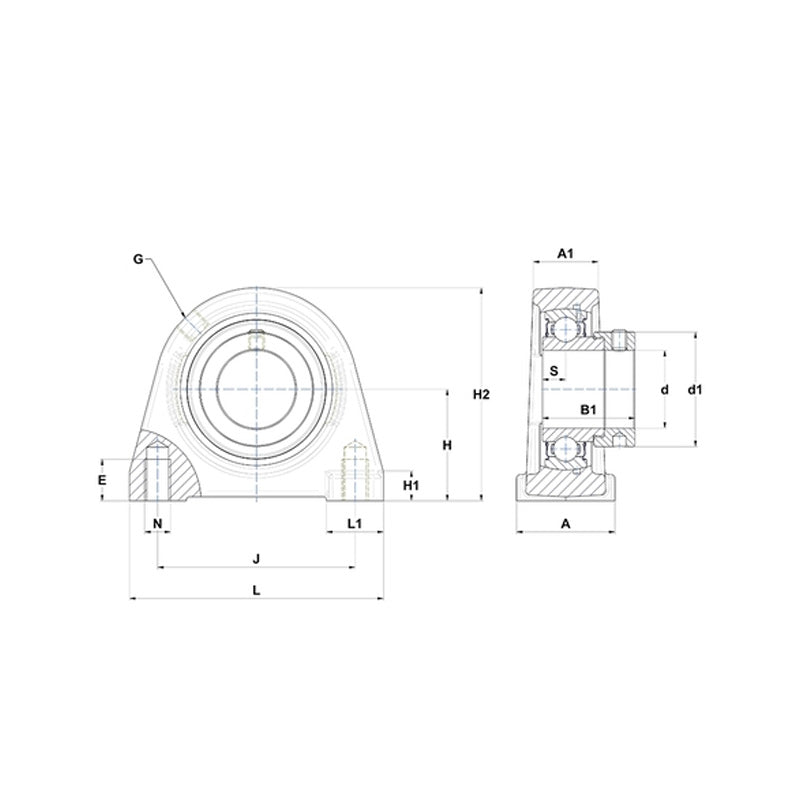

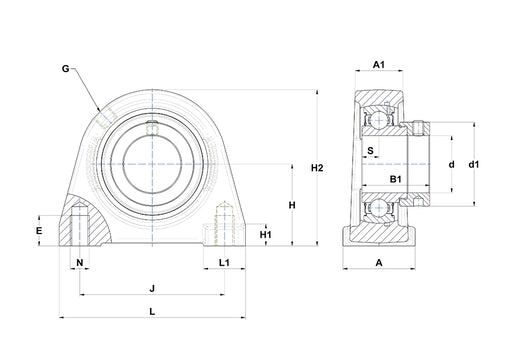

--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 30.2mm
d1 62mm
E 15mm
H 53.9mm
H1 14mm
H2 107mm
J 95.3mm
L 120mm
L1 29mm
N M12
S 11mm
G R1/8"
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.89 kg
