SKU: ESPAE208-SNR

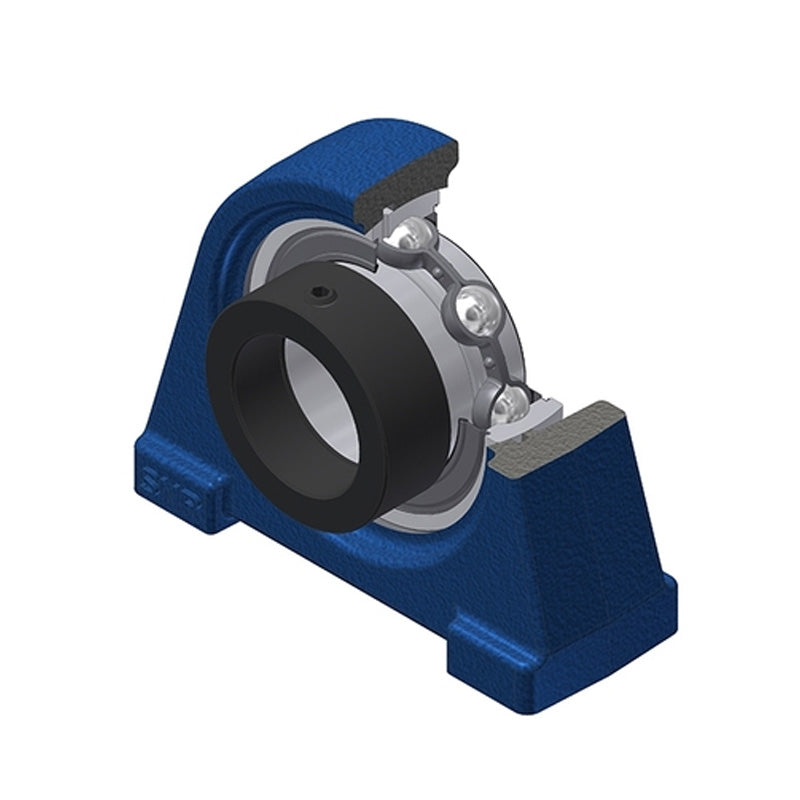

SNR ESPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR ESPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
€46,95 ex VAT
€46,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €35,00
4+ €33,04
9+ €32,64
19+ €32,25
49+ €31,86
99+ €31,47
499+ €29,50
999+ €29,11
1999+ €28,71
2999+ €28,32
4999+ €27,53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
N3G4VXOYBO
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESPAE
Bolt Hole Centres:
88.9mm
Technical

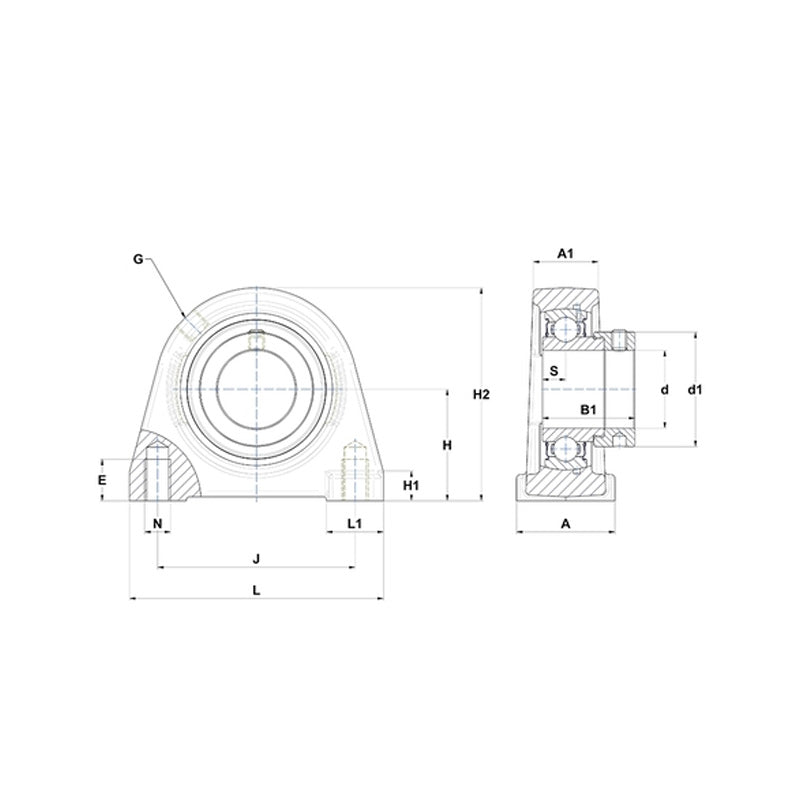

--- Dimensions
Shaft diameter 40mm
A 47mm
A1 30mm
B 30.2mm
d1 58mm
E 15mm
H 49.2mm
H1 13mm
H2 99mm
J 88.9mm
L 116mm
L1 27mm
N M12
S 11mm
G R1/8"
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.65 kg
