SKU: ESPAE204-SNR

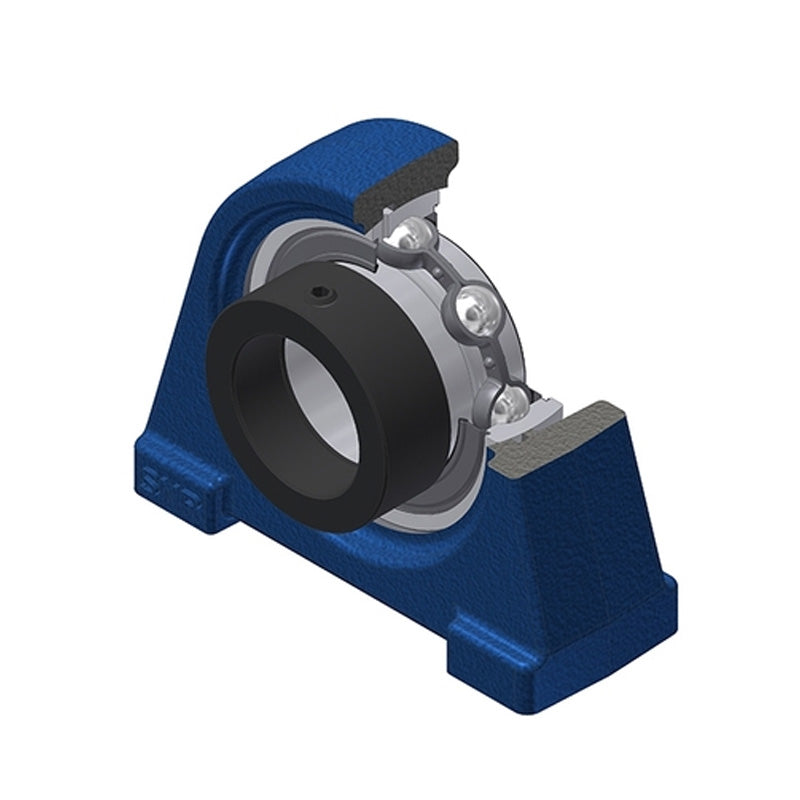

SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days

SNR ESPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,37
4+ €19,23
9+ €19,00
19+ €18,77
49+ €18,54
99+ €18,31
499+ €17,17
999+ €16,94
1999+ €16,71
2999+ €16,48
4999+ €16,02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
N3G4VXOYBO
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
ESPAE
Bolt Hole Centres:
50.8mm
Technical

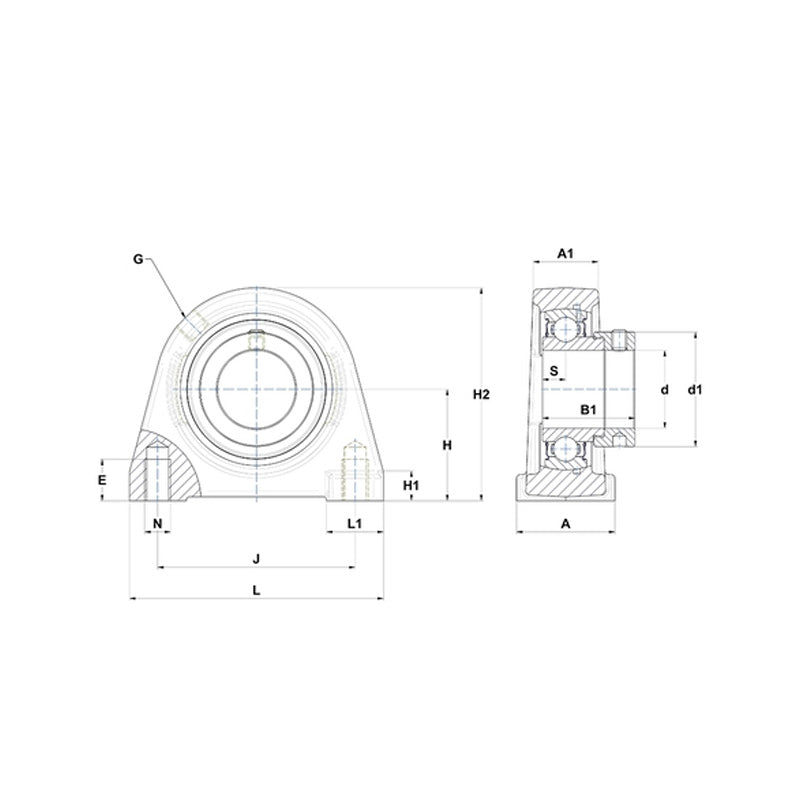

--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 21.4mm
d1 32.4mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 7.5mm
G R1/8"
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.45 kg
