SKU: ESP212-SNR

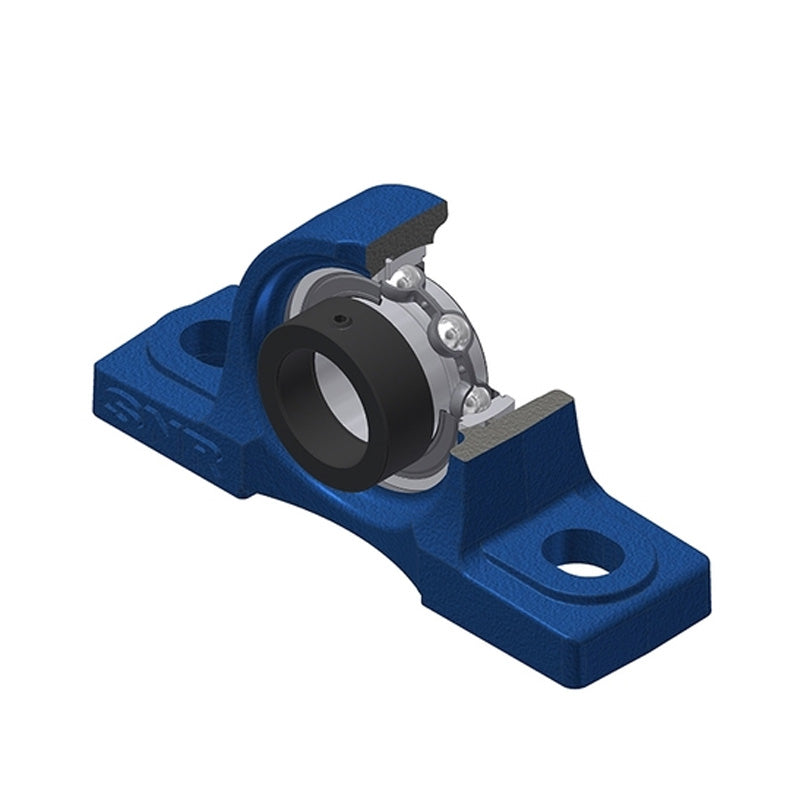

SNR ESP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
€76,95 ex VAT
€76,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €58,19
4+ €54,92
9+ €54,27
19+ €53,61
49+ €52,96
99+ €52,31
499+ €49,04
999+ €48,38
1999+ €47,73
2999+ €47,08
4999+ €45,77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6R2VIB64NR
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
ESP
Bolt Hole Centres:
184mm
Technical

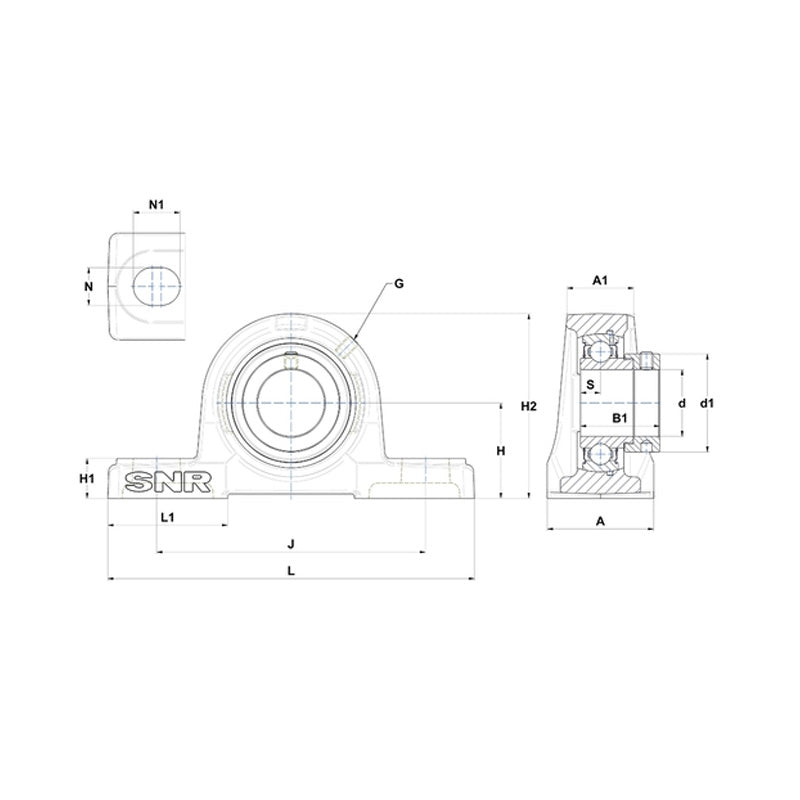

--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 33.4mm
d1 82mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.7 kg
