SKU: ESP209-SNR

SNR ESP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
€49,95 ex VAT
€49,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €37,75
4+ €35,63
9+ €35,20
19+ €34,78
49+ €34,35
99+ €33,93
499+ €31,81
999+ €31,38
1999+ €30,96
2999+ €30,54
4999+ €29,69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6R2VIB64NR
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
ESP
Bolt Hole Centres:
146mm
Technical

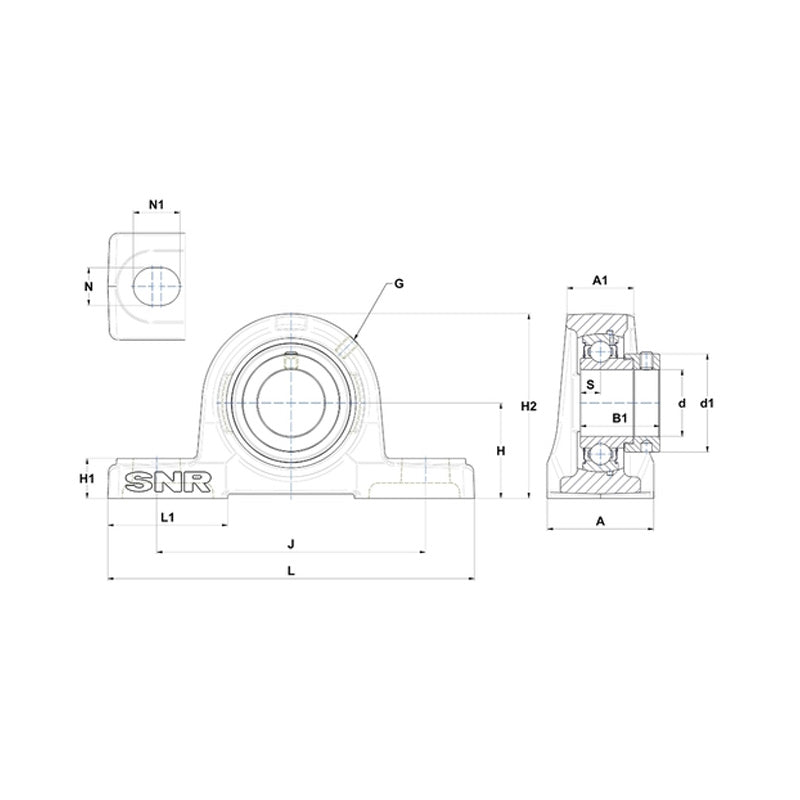

--- Dimensions
Shaft diameter d 45mm
A 54mm
A1 37mm
B 30.2mm
d1 62mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.39 kg
