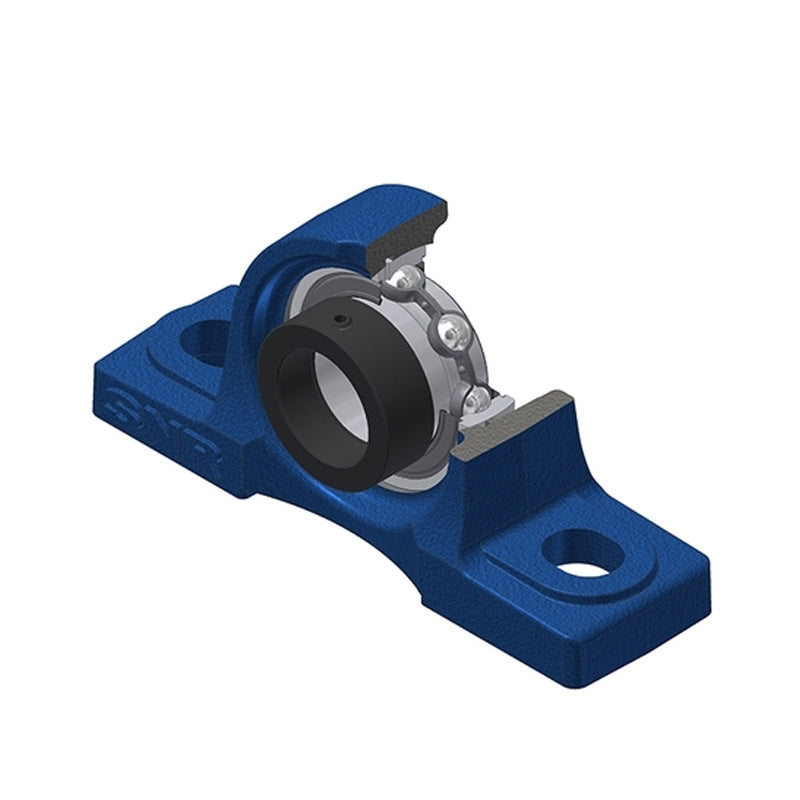

• SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
  • SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
1 2

SKU: ESP204-12-SNR

SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days

SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,02
4+ €18,89
9+ €18,67
19+ €18,44
49+ €18,22
99+ €17,99
499+ €16,87
999+ €16,64
1999+ €16,42
2999+ €16,19
4999+ €15,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
6R2VIB64NR
Brand / Quality:
SNR - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
ESP
Bolt Hole Centres:
95mm
Technical

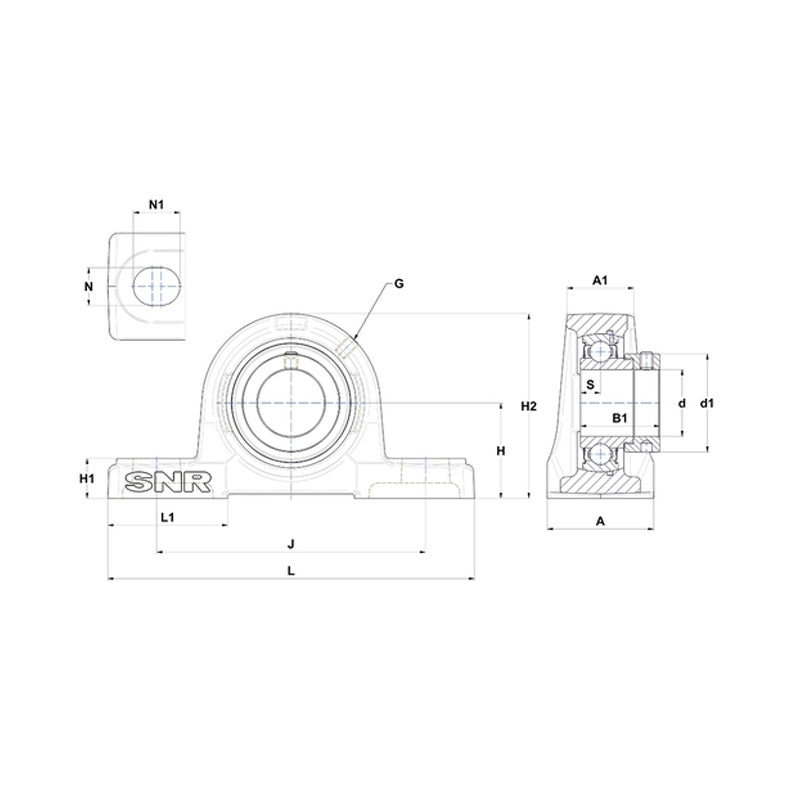

--- Dimensions
Shaft diameter d 3/4 inch
A 38mm
A1 22mm
B 21.4mm
d1 32.4mm
H 33.3mm
H1 15mm
H2 65mm
J 95mm
L 127mm
L1 42mm
N 13mm
N1 19mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.7 Nm
Mass 0.65 kg
