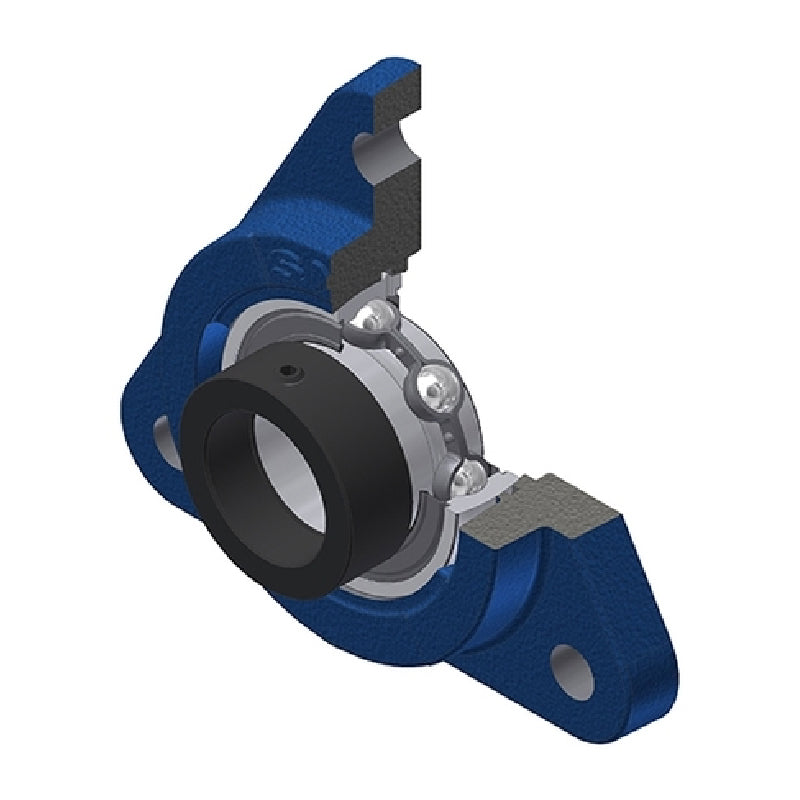

• SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
1 1

SKU: ESFTE209-SNR

SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days

SNR ESFTE209 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
€56,95 ex VAT
€56,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €42,89
4+ €40,48
9+ €40,00
19+ €39,52
49+ €39,04
99+ €38,56
499+ €36,15
999+ €35,66
1999+ €35,18
2999+ €34,70
4999+ €33,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ZIYDUB5MZW
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
ESFTE
Bolt Hole Centres:
160mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 33mm
A1 16mm
A2 51.9mm
B 30.2mm
B1 43.7mm
d1 62mm
e 19.2mm
H 150mm
H1 55mm
J 160mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.09 kg
