SKU: ESFTE207-SNR

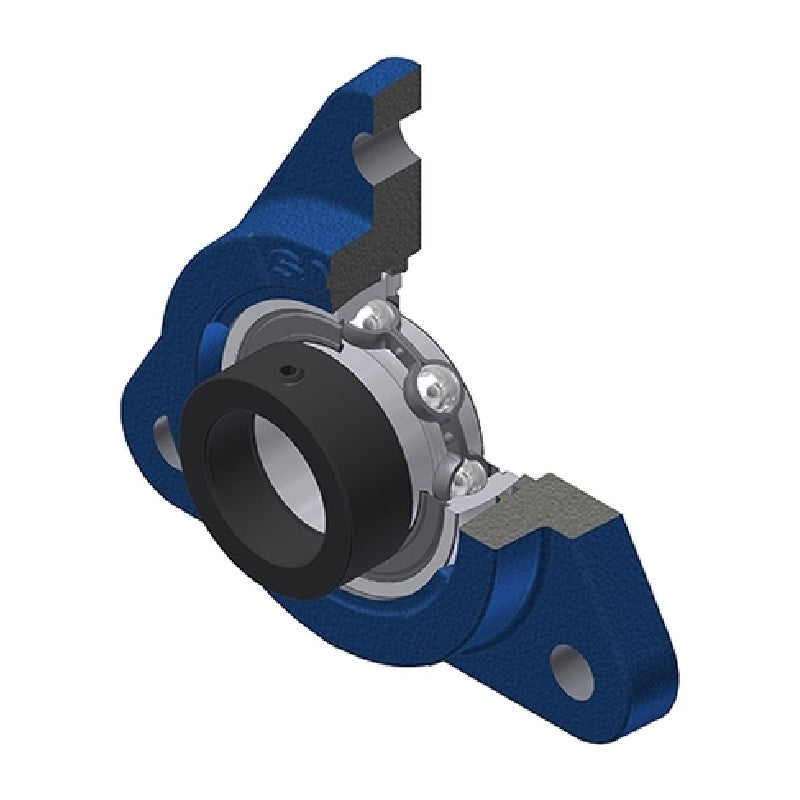

SNR ESFTE207 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
SNR ESFTE207 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
Low stock
Price Break
3+
€35,34
4+
€33,36
9+
€32,96
19+
€32,56
49+
€32,17
99+
€31,77
499+
€29,78
999+
€29,39
1999+
€28,99
2999+
€28,59
4999+
€27,80
Quantity
Couldn't load pickup availability
Share this product
Description
Description
ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESFTE
- Bolt Hole Centres:
- 129.7mm
Technical
Technical

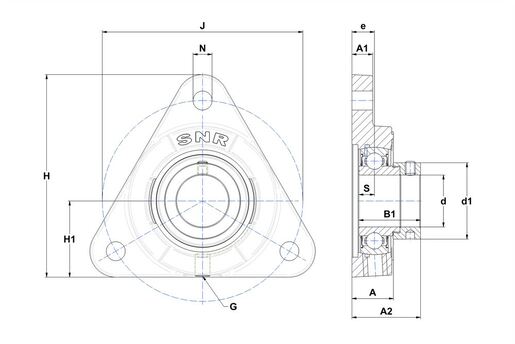

| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 27mm |
| A1 | 16mm |
| A2 | 45mm |
| B | 25.4mm |
| B1 | 38.9mm |
| d1 | 51.1mm |
| e | 15.6mm |
| H | 128mm |
| H1 | 48mm |
| J | 129.7mm |
| N | 13.5mm |
| S | 9.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.5 kg |
