SKU: ESFTE204-SNR

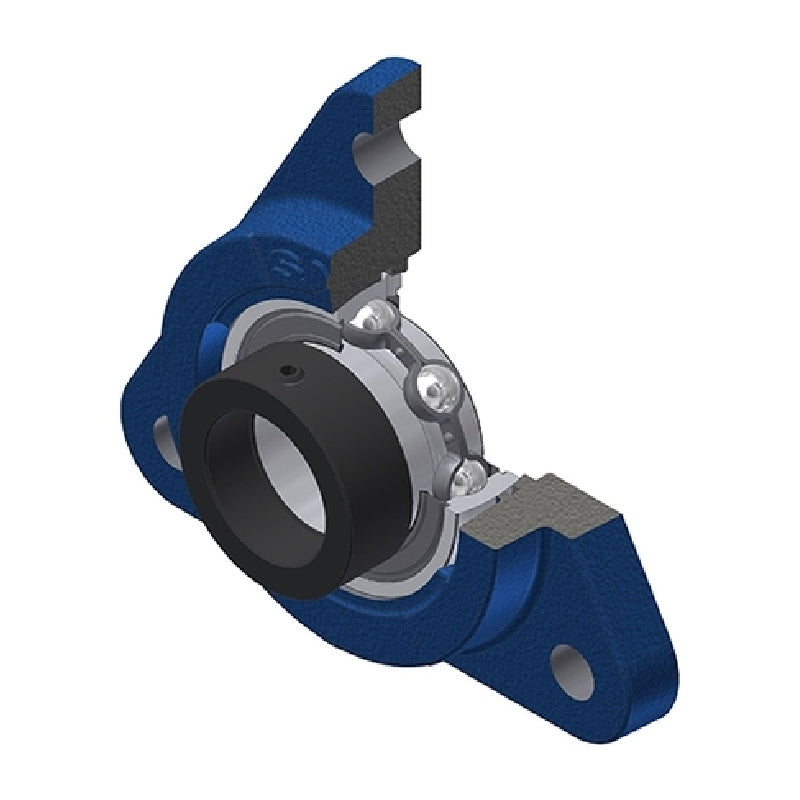

SNR ESFTE204 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
SNR ESFTE204 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
In stock
Price Break
3+
€22,88
4+
€21,59
9+
€21,33
19+
€21,08
49+
€20,82
99+
€20,56
499+
€19,28
999+
€19,02
1999+
€18,76
2999+
€18,51
4999+
€17,99
Quantity
Couldn't load pickup availability
Description
Description
ZIYDUB5MZW
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESFTE
- Bolt Hole Centres:
- 89.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 20mm |
| A1 | 11mm |
| A2 | 34.4mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 32.4mm |
| e | 11mm |
| H | 92mm |
| H1 | 35mm |
| J | 89.5mm |
| N | 11.5mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.55 kg |
