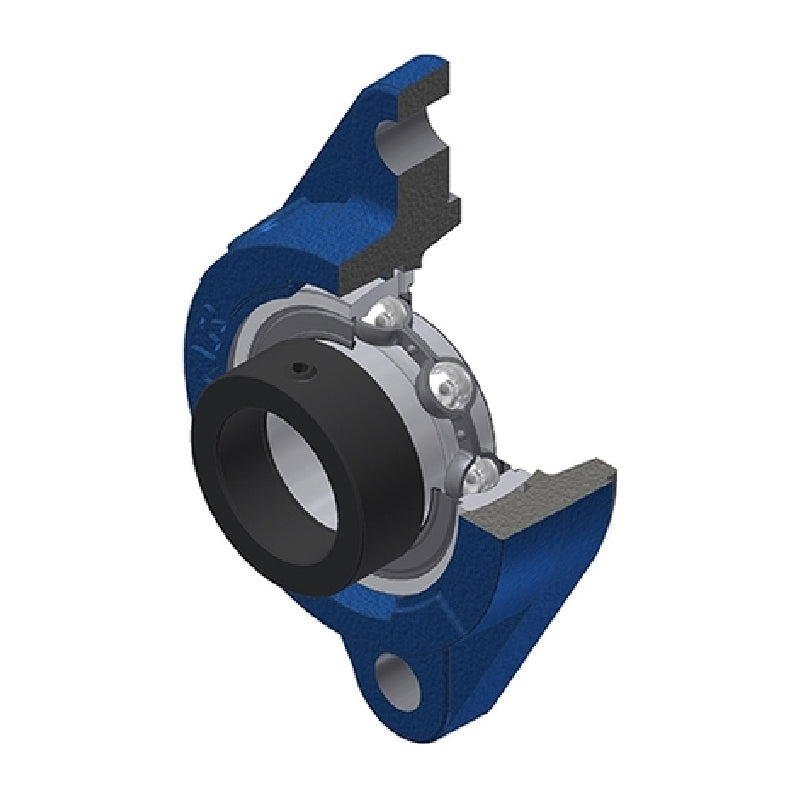

• SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLZ210-SNR

SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLZ210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
€63,95 ex VAT
€63,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €48,04
4+ €45,34
9+ €44,80
19+ €44,26
49+ €43,72
99+ €43,18
499+ €40,48
999+ €39,94
1999+ €39,40
2999+ €38,86
4999+ €37,78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ZHLL5WR5UB
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESFLZ
Bolt Hole Centres:
157mm
Technical

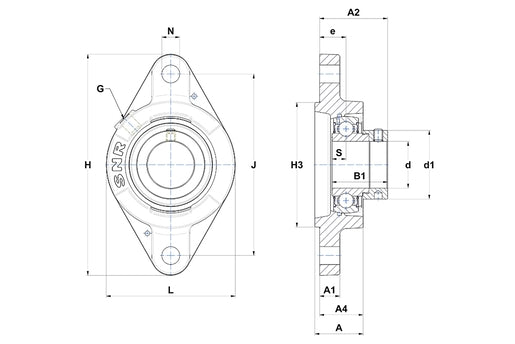

--- Dimensions
Shaft diameter d 50mm
A 41mm
A1 13mm
A2 56.7mm
A4 37mm
B 30.2mm
B1 43.7mm
d1 67.2mm
e 24mm
H 190mm
H3 105mm
J 157mm
L 116mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.1 kg
