• SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE210-SNR

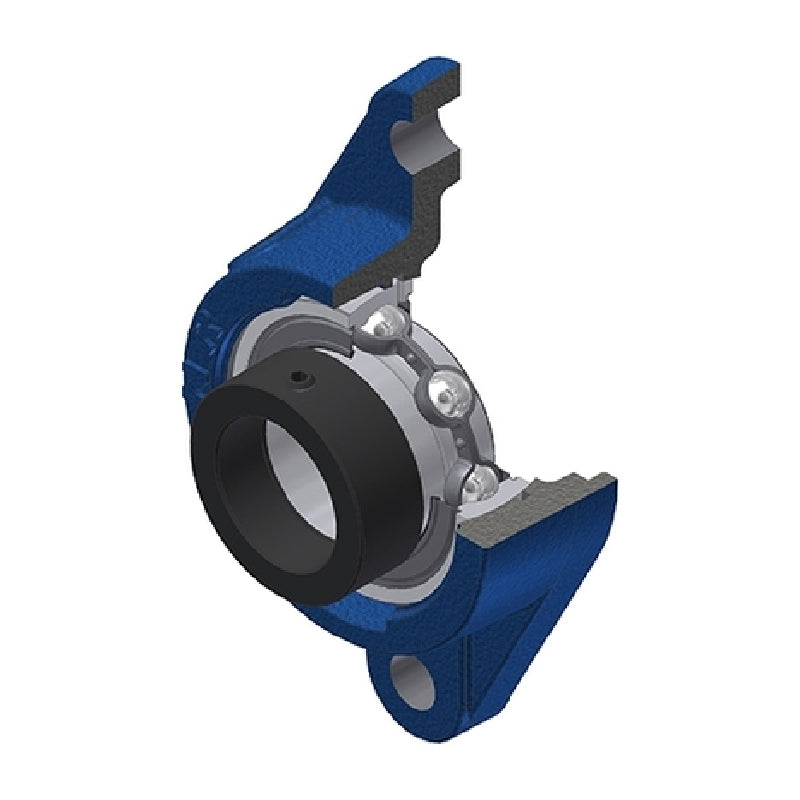

SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE210 Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
€51,95 ex VAT
€51,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €39,46
4+ €37,25
9+ €36,80
19+ €36,36
49+ €35,91
99+ €35,47
499+ €33,25
999+ €32,81
1999+ €32,37
2999+ €31,92
4999+ €31,04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
ESFLE
Bolt Hole Centres:
157mm
Technical
--- Dimensions
Shaft diameter d 50mm
A 41.6mm
A1 13mm
A2 60.7mm
B 30.2mm
B1 43.7mm
d1 67.2mm
e 28mm
H 190mm
J 157mm
L 116mm
N 18mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.1 kg
