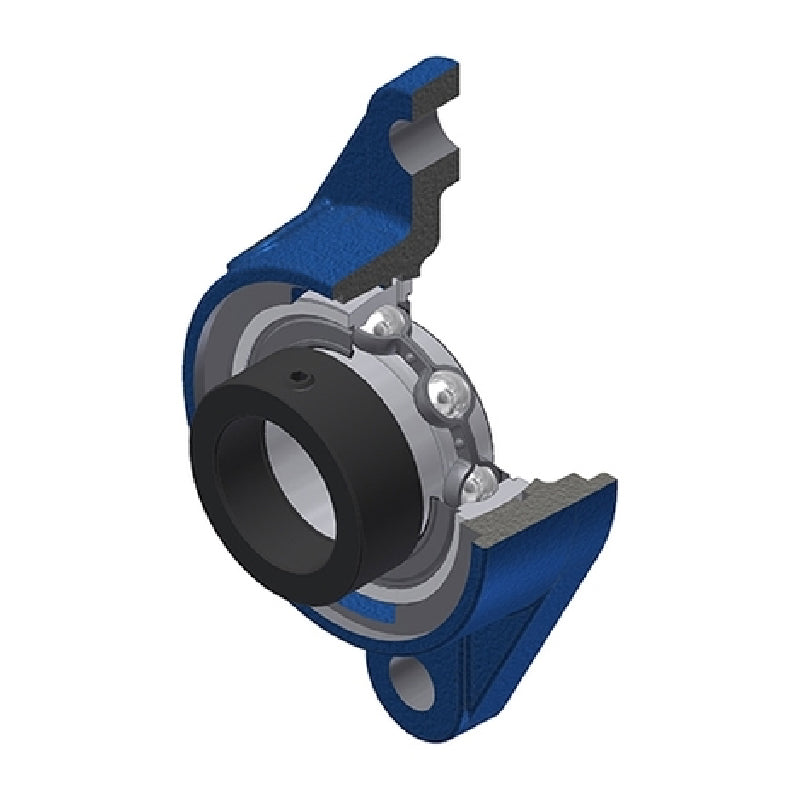

• SNR ESFLE208N Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE208N-SNR

SNR ESFLE208N Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE208N Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
€45,95 ex VAT
€45,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €34,31
4+ €32,39
9+ €32,00
19+ €31,62
49+ €31,23
99+ €30,84
499+ €28,92
999+ €28,53
1999+ €28,15
2999+ €27,76
4999+ €26,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESFLE
Bolt Hole Centres:
143.5mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 37.5mm
A1 13mm
A2 56.7mm
B 30.2mm
B1 43.7mm
d1 58mm
e 24mm
H 172mm
J 143.5mm
L 105mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.65 kg
