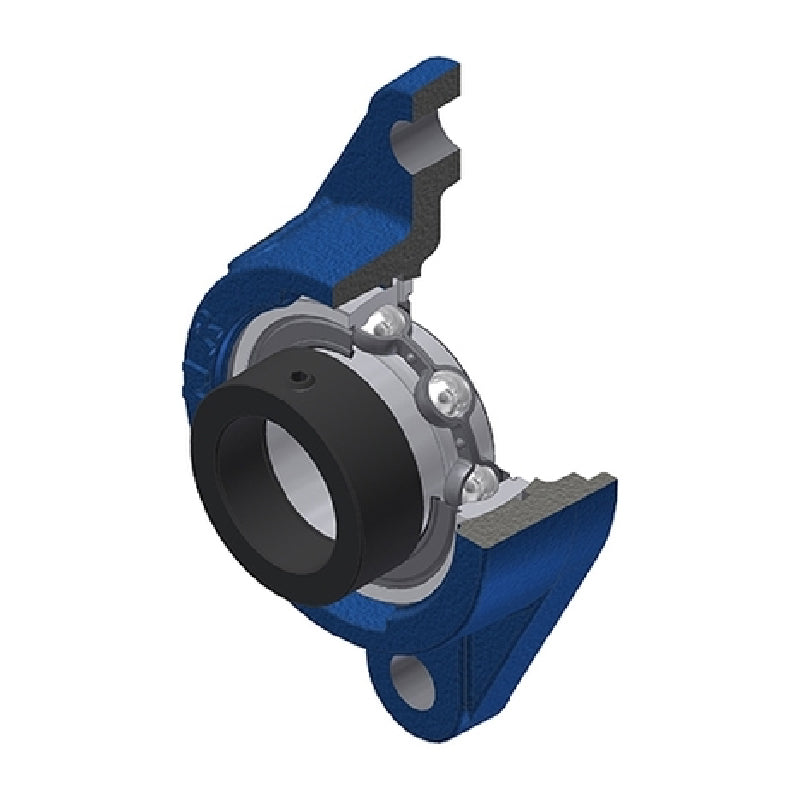

• SNR ESFLE208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE208-SNR

SNR ESFLE208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
€40,95 ex VAT
€40,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,79
4+ €29,06
9+ €28,72
19+ €28,37
49+ €28,02
99+ €27,68
499+ €25,95
999+ €25,60
1999+ €25,26
2999+ €24,91
4999+ €24,22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESFLE
Bolt Hole Centres:
143.5mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 37.5mm
A1 13mm
A2 56.7mm
B 30.2mm
B1 43.7mm
d1 58mm
e 24mm
H 172mm
J 143.5mm
L 105mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.65 kg
