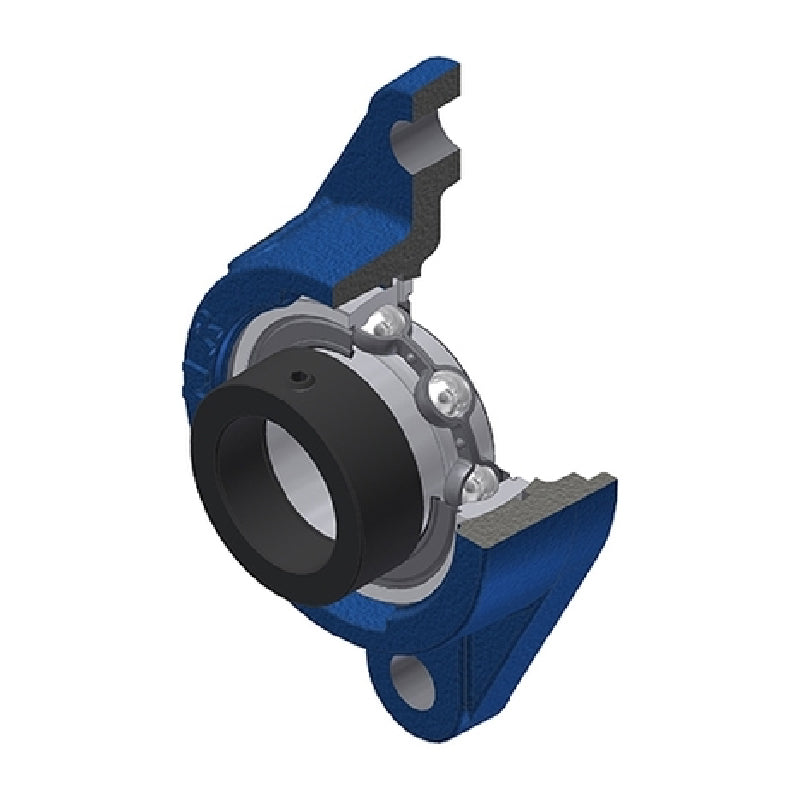

• SNR ESFLE207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE207-SNR

SNR ESFLE207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,69
4+ €25,19
9+ €24,89
19+ €24,59
49+ €24,29
99+ €23,99
499+ €22,49
999+ €22,19
1999+ €21,89
2999+ €21,59
4999+ €20,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESFLE
Bolt Hole Centres:
130mm
Technical

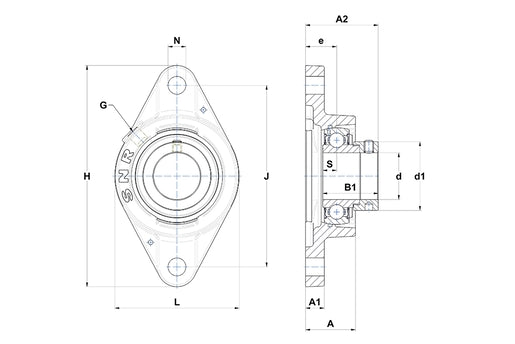

--- Dimensions
Shaft diameter d 35mm
A 33.7mm
A1 12.5mm
A2 50.4mm
B 25.4mm
B1 38.9mm
d1 51.1mm
e 21mm
H 155mm
J 130mm
L 92mm
N 14mm
S 9.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.2 kg
