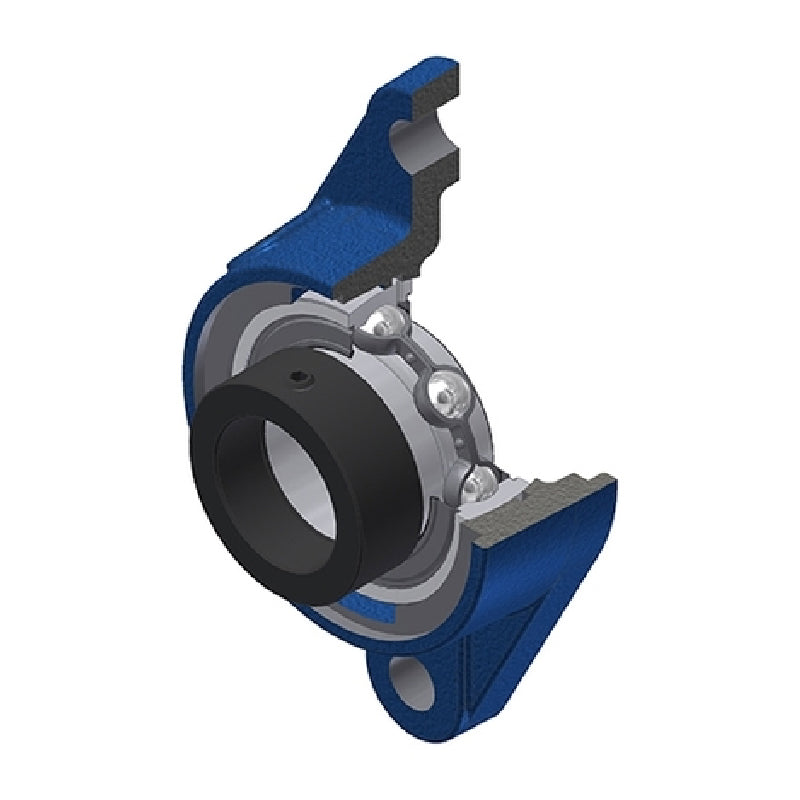

• SNR ESFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE206N-SNR

SNR ESFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
€49,95 ex VAT
€49,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €37,75
4+ €35,63
9+ €35,20
19+ €34,78
49+ €34,35
99+ €33,93
499+ €31,81
999+ €31,38
1999+ €30,96
2999+ €30,54
4999+ €29,69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESFLE
Bolt Hole Centres:
116.5mm
Technical
--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 46.7mm
B 23.8mm
B1 35.7mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.83 kg
