SKU: ESFLE206-SNR

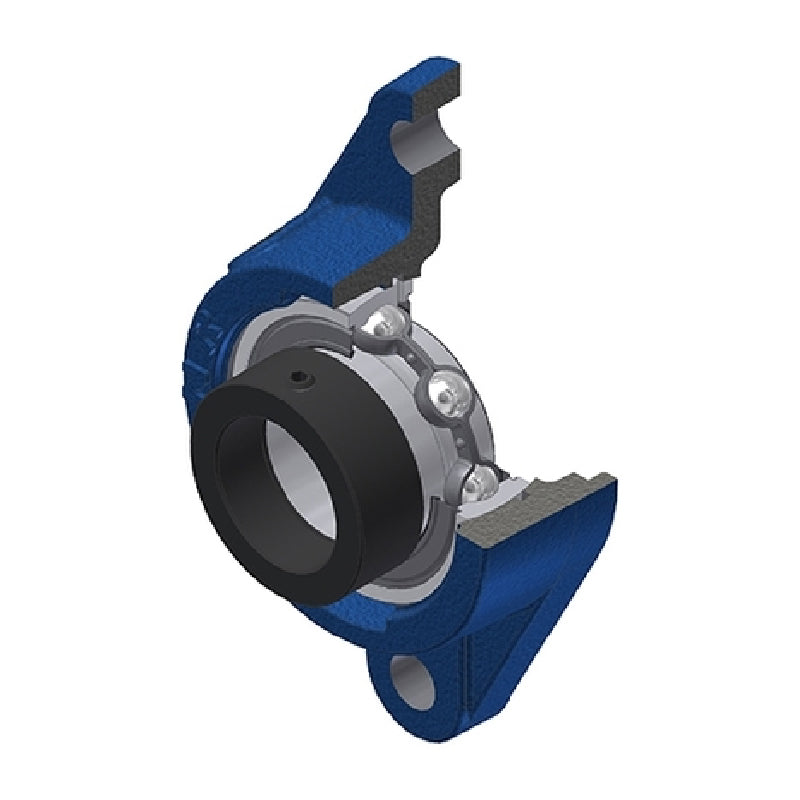

SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
€30,95 ex VAT
€30,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €22,88
4+ €21,59
9+ €21,33
19+ €21,08
49+ €20,82
99+ €20,56
499+ €19,28
999+ €19,02
1999+ €18,76
2999+ €18,51
4999+ €17,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESFLE
Bolt Hole Centres:
116.5mm
Technical

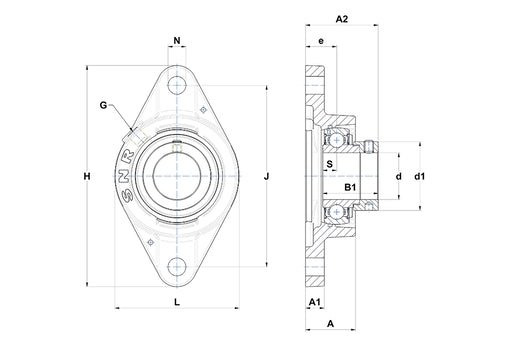

--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 46.7mm
B 23.8mm
B1 35.7mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.83 kg
