• SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFLE201-SNR

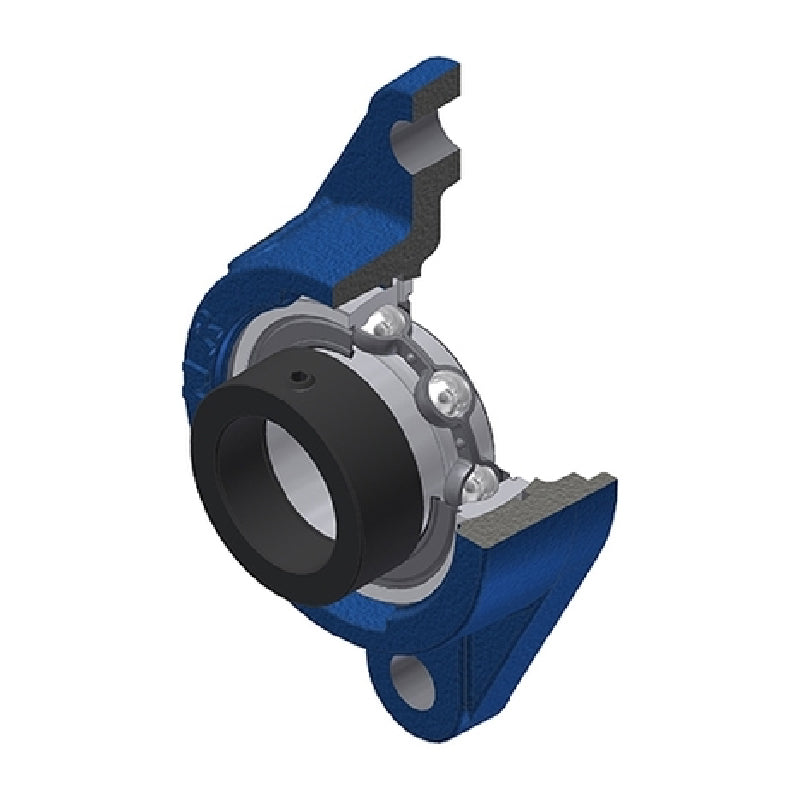

SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE201 Metric Two Bolt Cast Iron Oval Housing with 12mm Bore Eccentric Collar Insert - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €19,74
4+ €18,63
9+ €18,41
19+ €18,18
49+ €17,96
99+ €17,74
499+ €16,63
999+ €16,41
1999+ €16,19
2999+ €15,97
4999+ €15,52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7UHIEJ23TO
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
ESFLE
Bolt Hole Centres:
76.5mm
Technical
--- Dimensions
Shaft diameter d 12mm
A 26mm
A1 9.5mm
A2 39.1mm
B 19mm
B1 28.6mm
d1 27.2mm
e 17mm
H 99mm
J 76.5mm
L 57mm
N 11.5mm
S 6.5mm
G M6
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.4 kg
