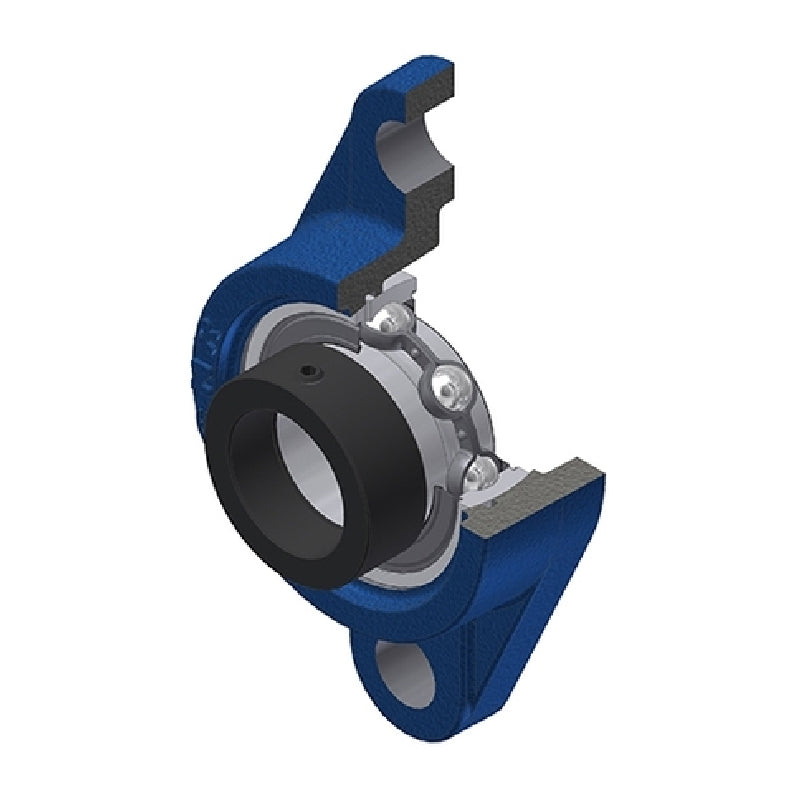

• SNR ESFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFL206-SNR

SNR ESFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFL206 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,69
4+ €25,19
9+ €24,89
19+ €24,59
49+ €24,29
99+ €23,99
499+ €22,49
999+ €22,19
1999+ €21,89
2999+ €21,59
4999+ €20,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JSMO1G5H2P
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESFL
Bolt Hole Centres:
117mm
Technical

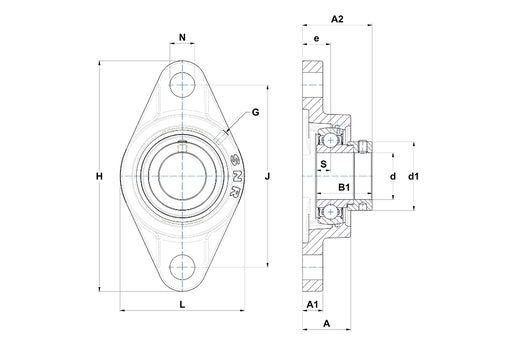

--- Dimensions
Shaft diameter d 30mm
A 31mm
A1 13mm
A2 44.7mm
B 23.8mm
B1 35.7mm
d1 44.1mm
e 18mm
H 148mm
J 117mm
L 80mm
N 16mm
S 9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.9 kg
