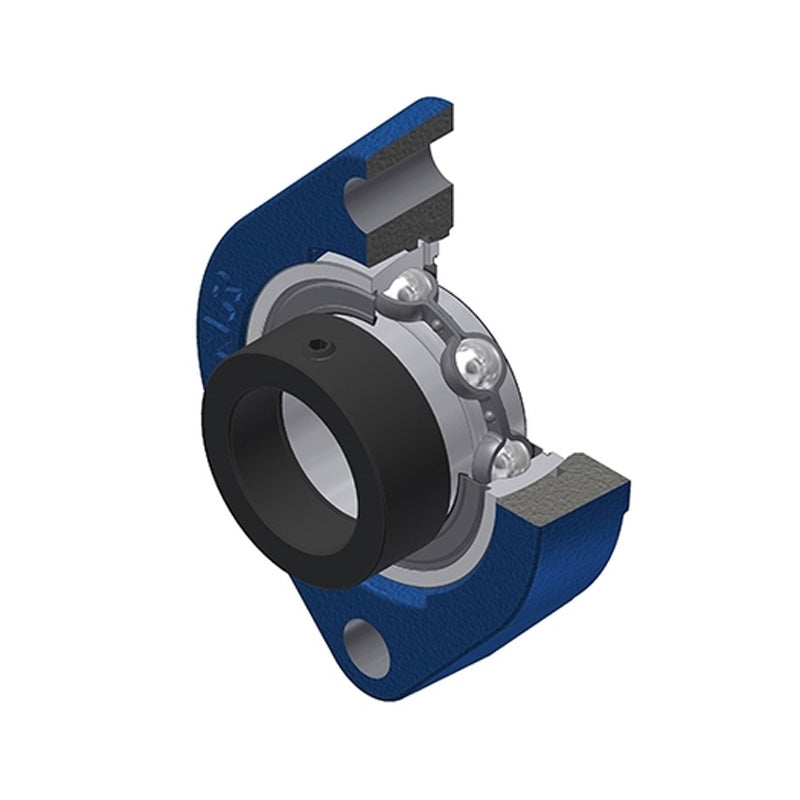

• SNR ESFD208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert
1 1

SKU: ESFD208-SNR

SNR ESFD208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert

SNR ESFD208 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert
€45,95 ex VAT
€45,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €34,31
4+ €32,39
9+ €32,00
19+ €31,62
49+ €31,23
99+ €30,84
499+ €28,92
999+ €28,53
1999+ €28,15
2999+ €27,76
4999+ €26,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
WMMAS79XOR
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESFD
Bolt Hole Centres:
119mm
Technical
--- Dimensions
Shaft diameter 40mm
A 24mm
A2 44.75mm
B 30.2mm
e 12.05mm
H 148mm
J 119mm
L 104mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.45 kg
