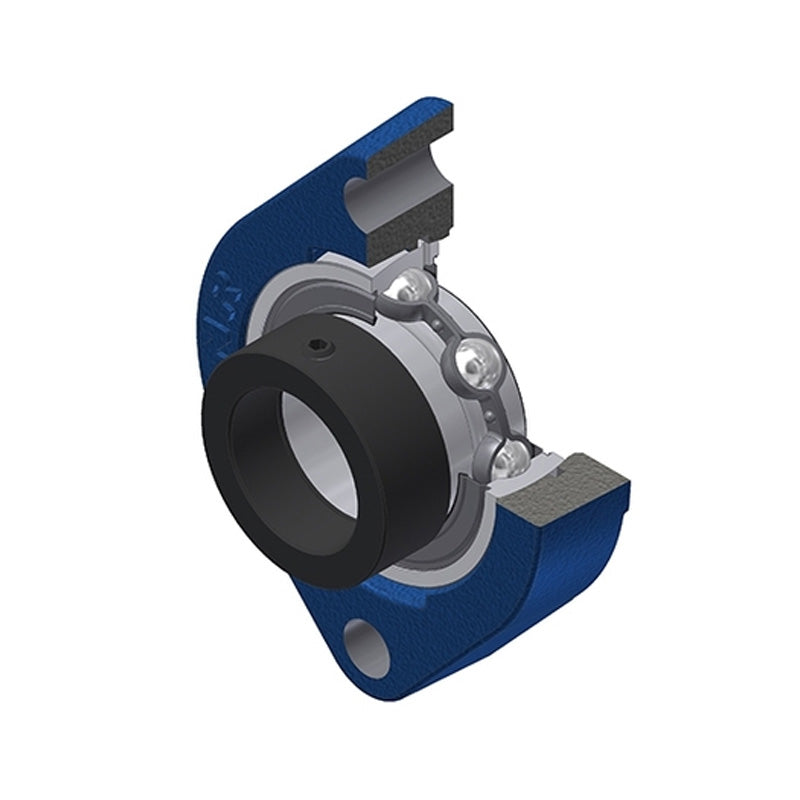

• SNR ESFD206M12 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFD206M12-SNR

SNR ESFD206M12 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFD206M12 Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,17
4+ €25,64
9+ €25,34
19+ €25,03
49+ €24,73
99+ €24,42
499+ €22,90
999+ €22,59
1999+ €22,29
2999+ €21,98
4999+ €21,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
WMMAS79XOR
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
ESFD
Bolt Hole Centres:
90.5mm
Technical
--- Dimensions
Shaft diameter 30mm
A 20.5mm
A2 38.1mm
B 23.8mm
e 11.4mm
H 112.5mm
J 90.5mm
L 84mm
M12 S
9mm G
R1/8″ ---
Load rating Dynamic load C
19.5 kN Static load C0
11.2 kN ---
Unit information Operating temperature min.
-20°C Operating temperature max.
100°C Recommended tightening torque for set screw
11.5 Nm Mass
0.73 kg N/A
