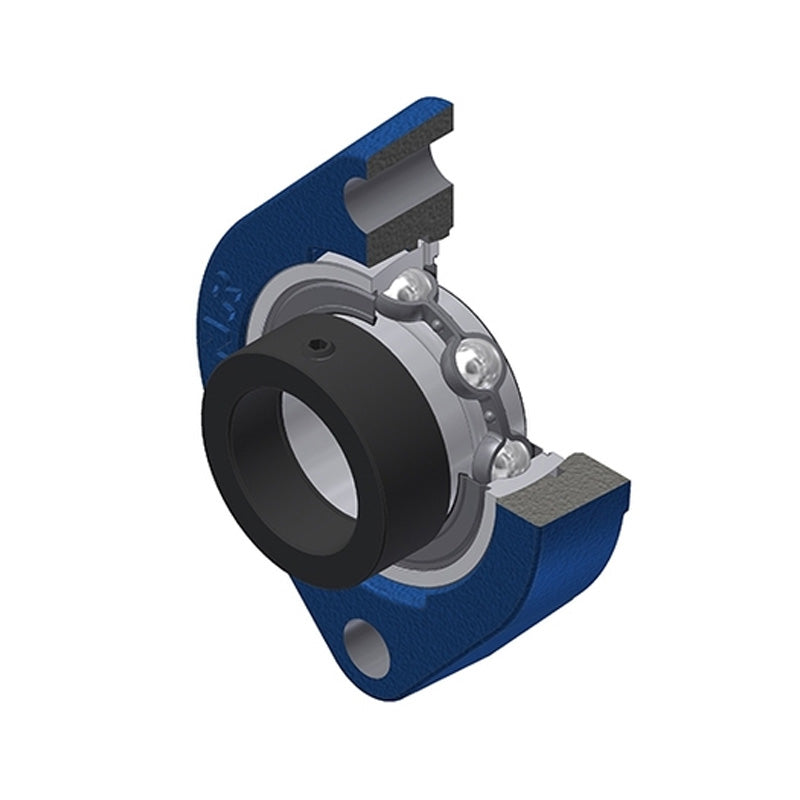

• SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: ESFD202-SNR

SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
€26,95 ex VAT
€26,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €20,02
4+ €18,89
9+ €18,67
19+ €18,44
49+ €18,22
99+ €17,99
499+ €16,87
999+ €16,64
1999+ €16,42
2999+ €16,19
4999+ €15,74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
WMMAS79XOR
Brand / Quality:
SNR - High Quality
Inside Diameter:
15mm
Style:
ESFD
Bolt Hole Centres:
63.5mm
Technical
--- Dimensions
Shaft diameter 15mm
A 15mm
A2 30.5mm
B 19.1mm
e 8.4mm
H 81mm
J 63.5mm
L 58.7mm
N 6.5mm
S 6.5mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.33 kg
