SKU: ESFC210-SNR

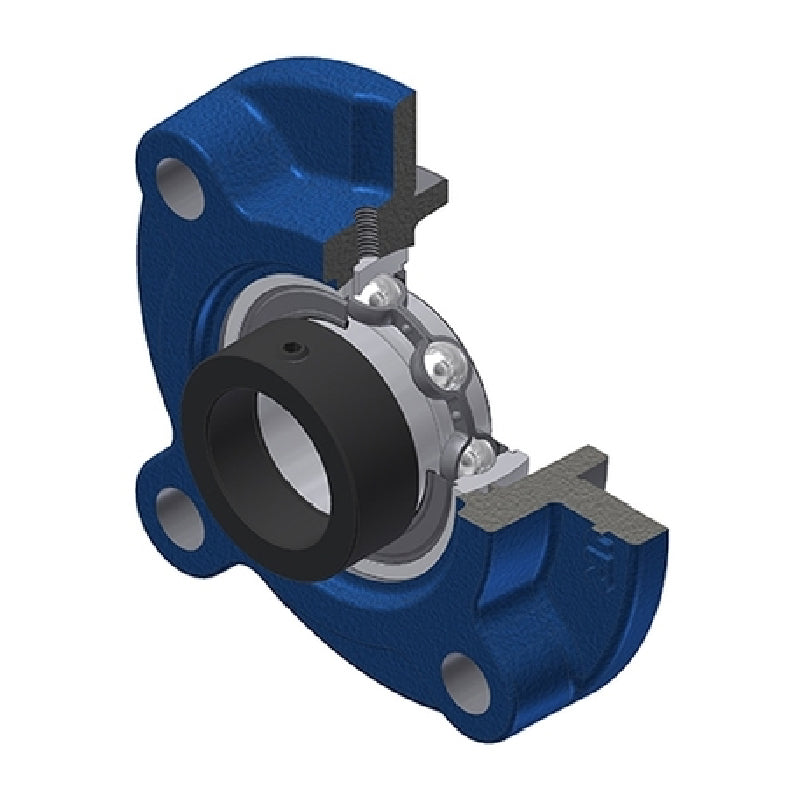

SNR ESFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €62,95 ex VAT
Regular price Sale price €62,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €47,19
4+ €44,54
9+ €44,01
19+ €43,48
49+ €42,95
99+ €42,42
499+ €39,76
999+ €39,23
1999+ €38,70
2999+ €38,17
4999+ €37,11
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

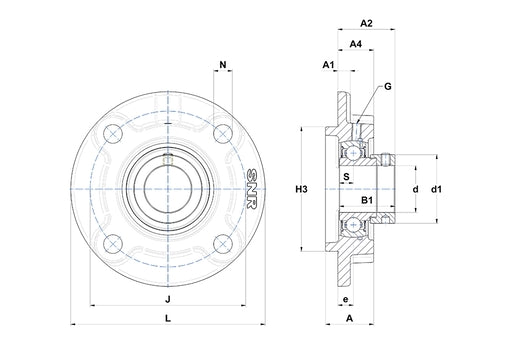

--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 14mm
A2 42.7mm
A4 28mm
B 30.2mm
B1 43.7mm
d1 67.2mm
e 10mm
H3 110mm
J 138mm
L 165mm
N 16mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.84 kg
