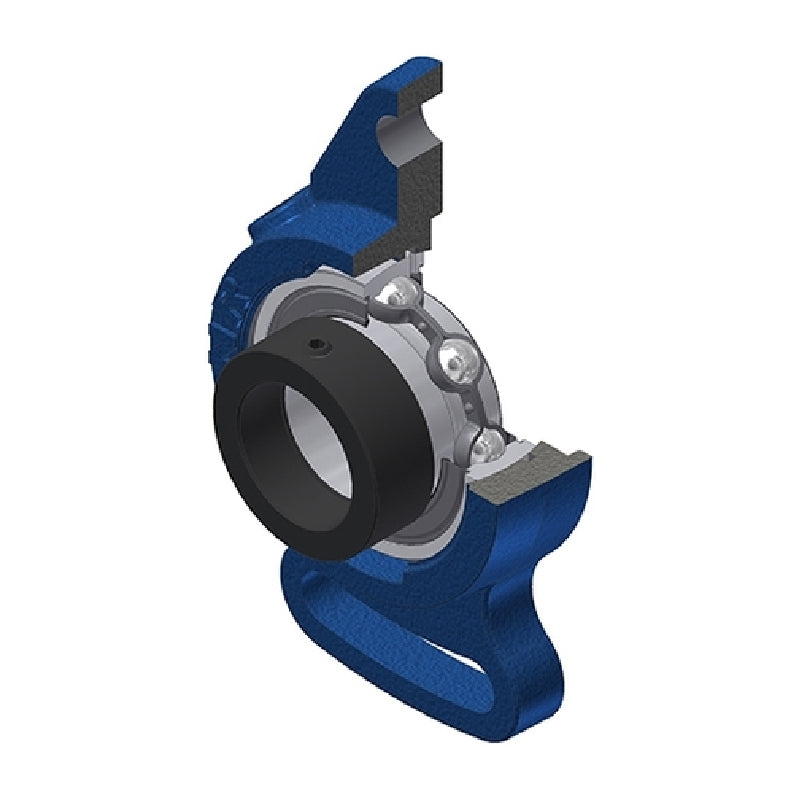

• SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
1 1

SKU: ESFAE207-SNR

SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
€35,95 ex VAT
€35,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €27,17
4+ €25,64
9+ €25,34
19+ €25,03
49+ €24,73
99+ €24,42
499+ €22,90
999+ €22,59
1999+ €22,29
2999+ €21,98
4999+ €21,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JTSN0H5DAW
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
ESFAE
Bolt Hole Centres:
128mm
Technical

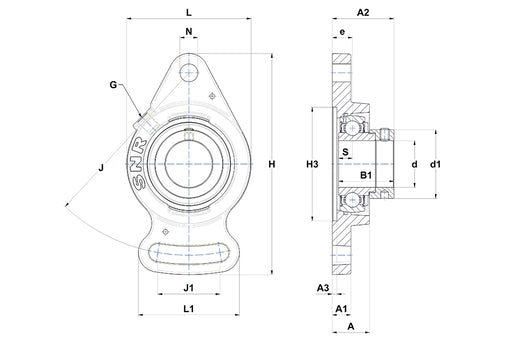

--- Dimensions
Shaft diameter d 35mm
A 26.5mm
A1 12.5mm
A2 44.4mm
A3 4.5mm
B 25.4mm
B1 38.9mm
d1 51.1mm
e 15mm
H 155mm
H3 82.5mm
J 128mm
J1 45mm
L 90mm
L1 75mm
N 14mm
S 9.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.1 kg
