• SNR ESF211 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 55mm Bore - Allow 2-3 Days
1 1

SKU: ESF211-SNR

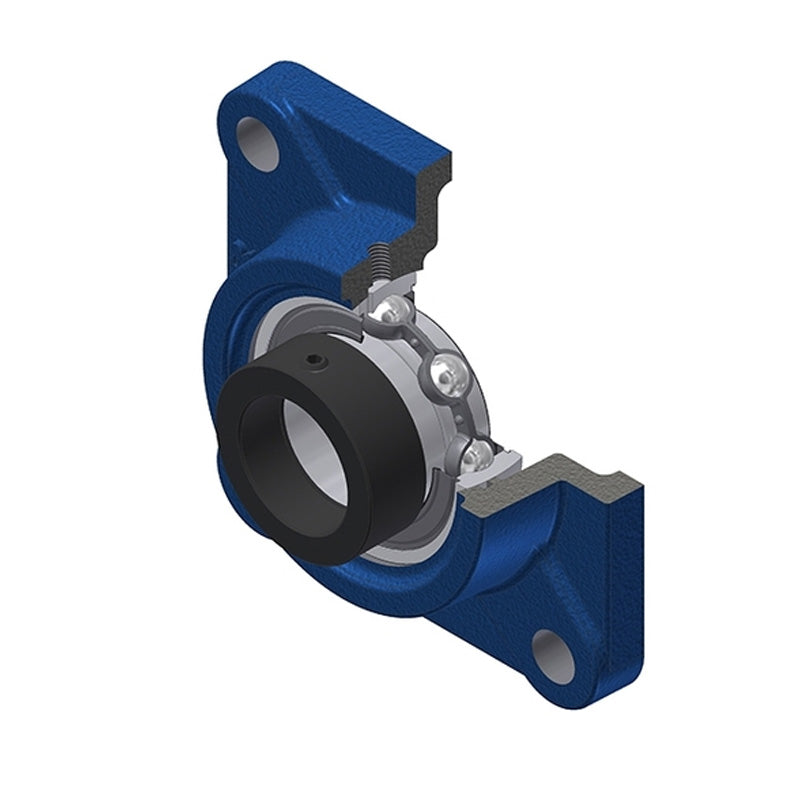

SNR ESF211 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 55mm Bore - Allow 2-3 Days

SNR ESF211 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 55mm Bore - Allow 2-3 Days
€62,95 ex VAT
€62,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €47,19
4+ €44,54
9+ €44,01
19+ €43,48
49+ €42,95
99+ €42,42
499+ €39,76
999+ €39,23
1999+ €38,70
2999+ €38,17
4999+ €37,11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LXCMIG7NEM
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
ESF
Bolt Hole Centres:
130mm
Technical

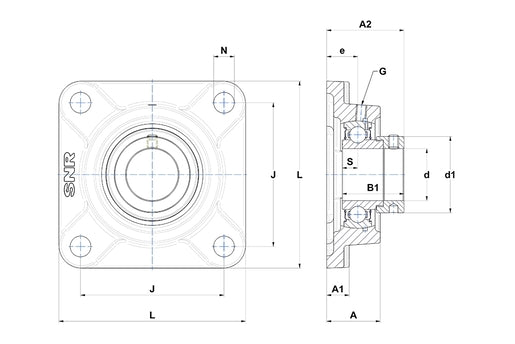

--- Dimensions
Shaft diameter d 55mm
A 43mm
A1 18mm
A2 61.4mm
B 32.5mm
B1 48.4mm
d1 74.5mm
e 25mm
J 130mm
L 162mm
N 19mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.06 kg
