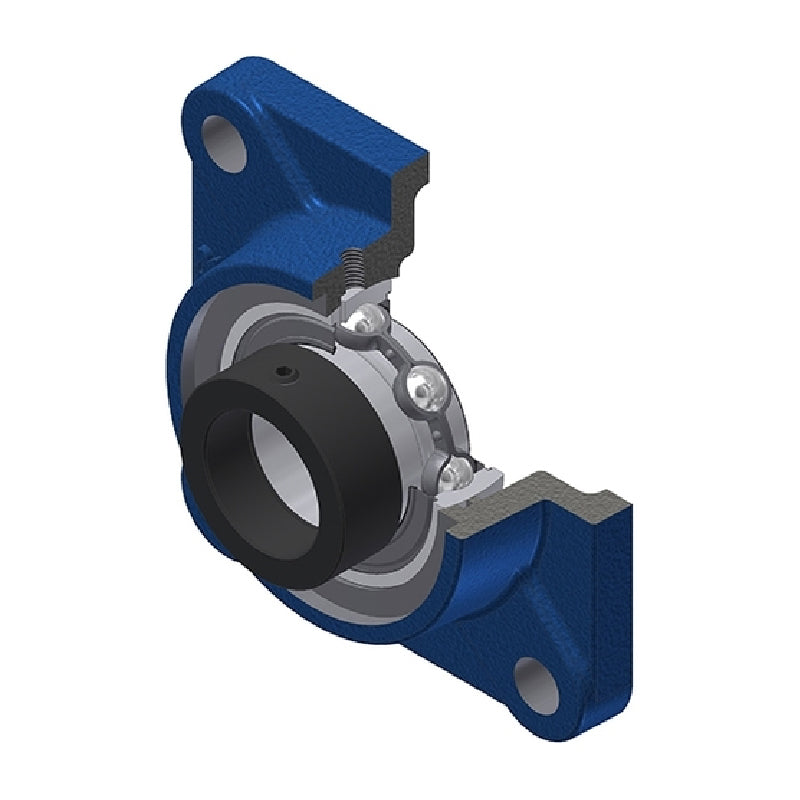

• SNR ESF205N Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 25mm Bore - Allow 2-3 Days
1 1

SKU: ESF205N-SNR

SNR ESF205N Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 25mm Bore - Allow 2-3 Days

SNR ESF205N Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 25mm Bore - Allow 2-3 Days
€32,95 ex VAT
€32,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €24,78
4+ €23,39
9+ €23,11
19+ €22,83
49+ €22,56
99+ €22,28
499+ €20,88
999+ €20,61
1999+ €20,33
2999+ €20,05
4999+ €19,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LXCMIG7NEM
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESF
Bolt Hole Centres:
70mm
Technical
--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 13mm
A2 39.4mm
B 21.4mm
B1 30.9mm
d1 37.4mm
e 16mm
J 70mm
L 95mm
N 12mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.77 kg
