• SNR ESF205 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 25mm Bore - Allow 2-3 Days
1 1

SKU: ESF205-SNR

SNR ESF205 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 25mm Bore - Allow 2-3 Days

SNR ESF205 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 25mm Bore - Allow 2-3 Days
€30,95 ex VAT
€30,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €22,88
4+ €21,59
9+ €21,33
19+ €21,08
49+ €20,82
99+ €20,56
499+ €19,28
999+ €19,02
1999+ €18,76
2999+ €18,51
4999+ €17,99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LXCMIG7NEM
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
ESF
Bolt Hole Centres:
70mm
Technical

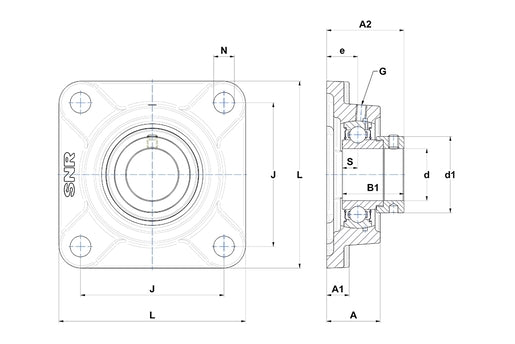

--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 13mm
A2 39.4mm
B 21.4mm
B1 30.9mm
d1 37.4mm
e 16mm
J 70mm
L 95mm
N 12mm
S 7.5mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.78 kg
