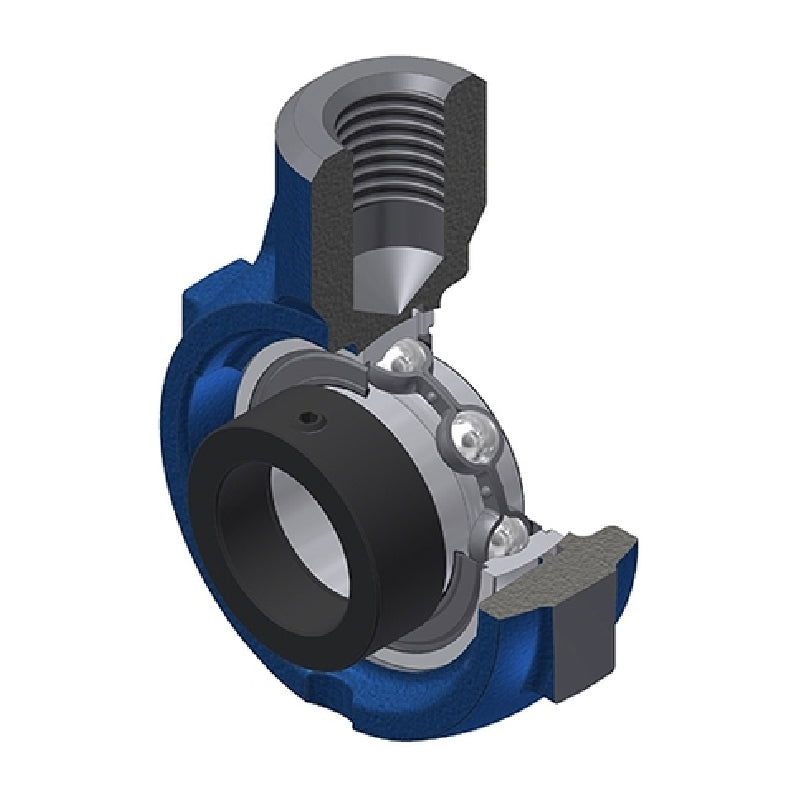

• SNR ESEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
1 1

SKU: ESEHE208-SNR

SNR ESEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR ESEHE208 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
€47,95 ex VAT
€47,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €36,03
4+ €34,01
9+ €33,60
19+ €33,20
49+ €32,79
99+ €32,39
499+ €30,36
999+ €29,96
1999+ €29,55
2999+ €29,15
4999+ €28,34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
7M4PQ3CR2C
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
ESEHE
Technical
--- Dimensions
Shaft diameter d 40mm
A 36mm
A2 40mm
B1 43.7mm
d1 58mm
E 24mm
H 100mm
L 135mm
L1 85mm
L3 45mm
S 11mm
G R1/8″
G1 M24
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.55 kg
